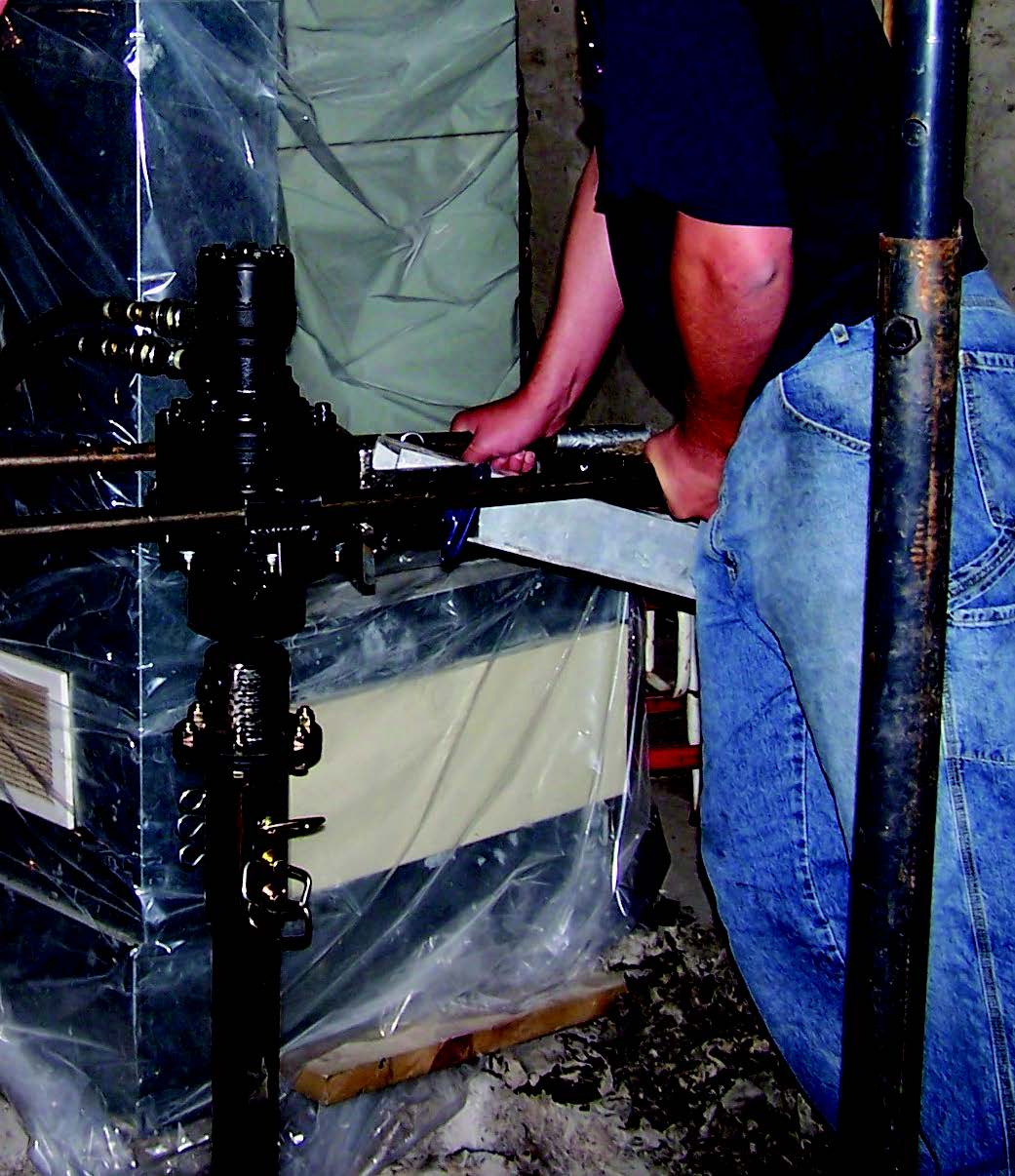

interior screw pile drilling

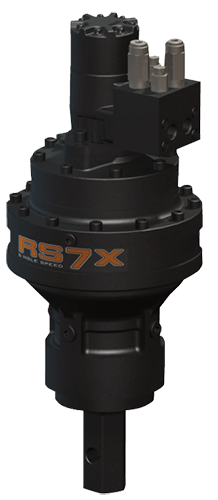

Pengo Auger Drive RS7X Series

pengo rs6 anchor drive RS7-Auger-Anchor-Driver1

Designed to fit with stand-alone power packs, the RS-7X provides the versatility to be mounted to a skid steer when the bail assembly (sold separately) is attached. This anchor drive allows you to work in small hard to reach places.

Categories: , , , , , ,

The RS7 anchor drives are lightweight and offer the shortest overall length and smallest diameter, making them a perfect fit for any hand-held operation These single-speed drives can also be mounted to a skid steer or mini-excavator and outfitted with the TruLink® Torque Monitor System to provide a complete anchor installation attachment.

hydraulic tool specifications - hydraulic tools and attachments hydraulic tool manual icon book hydraulic tools and attachments

Features:

  • Standard cross-over pressure relief system that is designed to protect the motor from pressure spikes and potential overload conditions,
  • Highly efficient gearbox designed for long duty cycles,
  • 2″ Hex output shaft.

HYDRAULIC MOTOR INFORMATION
Displacement 18.7 cu/in (306cc)
Motor Type Single Speed Bi-Directional
Motor Output Shaft 1″ 6B Spline
Motor Mount SAE – A 2 Bolt
Motor Ports 3/4″ – 16 O-Ring
Cross Over Pressure Relief Set at 2700 PSI

PLANETARY GEARBOX INFORMATION
Gearbox Type Planetary Two Stage
Reduction Ratio 14.79:1
Output Shaft 2″ Hex
Internal Oil Capacity .50 Gallons
Oil Type SAE 80W90
