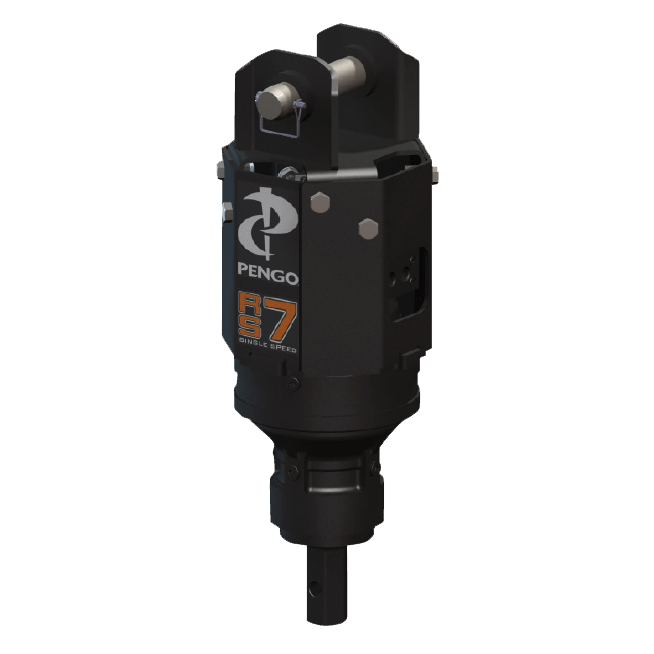

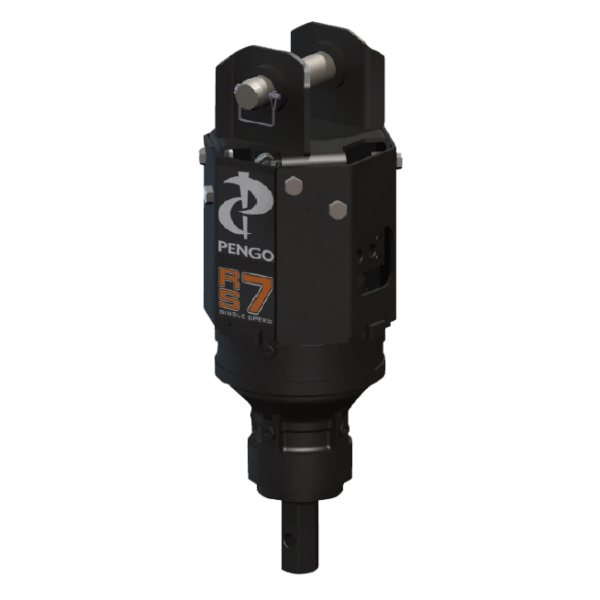

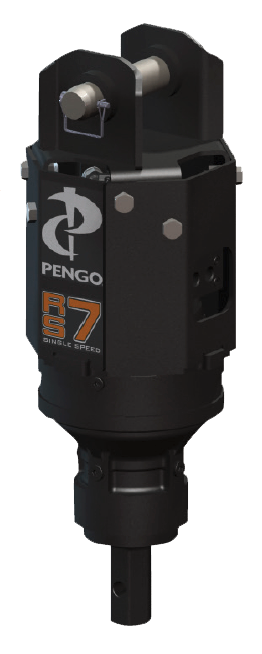

Choose the single-speed RS-7 anchor drive for your next installation project. The standard cross-over pressure relief system will protect the hydraulic motor from pressure spikes and potential overload conditions. Add a mount and the TruLink® for the complete drive system.

hydraulic tool specifications - hydraulic tools and attachments hydraulic tool manual icon book hydraulic tools and attachments

Features:

  • Removable top section,
  • Standard cross-over pressure relief system that is designed to protect the motor from pressure spikes and potential overload conditions,
  • Highly efficient gearbox designed for long duty cycles,
  • 2″ Hex output shaft.

HYDRAULIC MOTOR INFORMATION
Displacement 18.7 cu/in (306cc)
Motor Type Single Speed Bi-Directional
Motor Output Shaft 1″ 6B Spline
Motor Mount SAE – A 2 Bolt
Motor Ports 3/4″ – 16 O-Ring
Cross Over Pressure Relief Set at 2700 PSI

PLANETARY GEARBOX INFORMATION
Gearbox Type Planetary Two Stage
Reduction Ratio 14.79:1
Output Shaft 2″ Hex
Internal Oil Capacity .50 Gallons
Oil Type SAE 80W90 GL-5
Shaft Pull Out (lbs.) 7,000
