Deep Cutting, Gas Powered Saw
NOW 50:1 (2%) Fuel-to-oil!

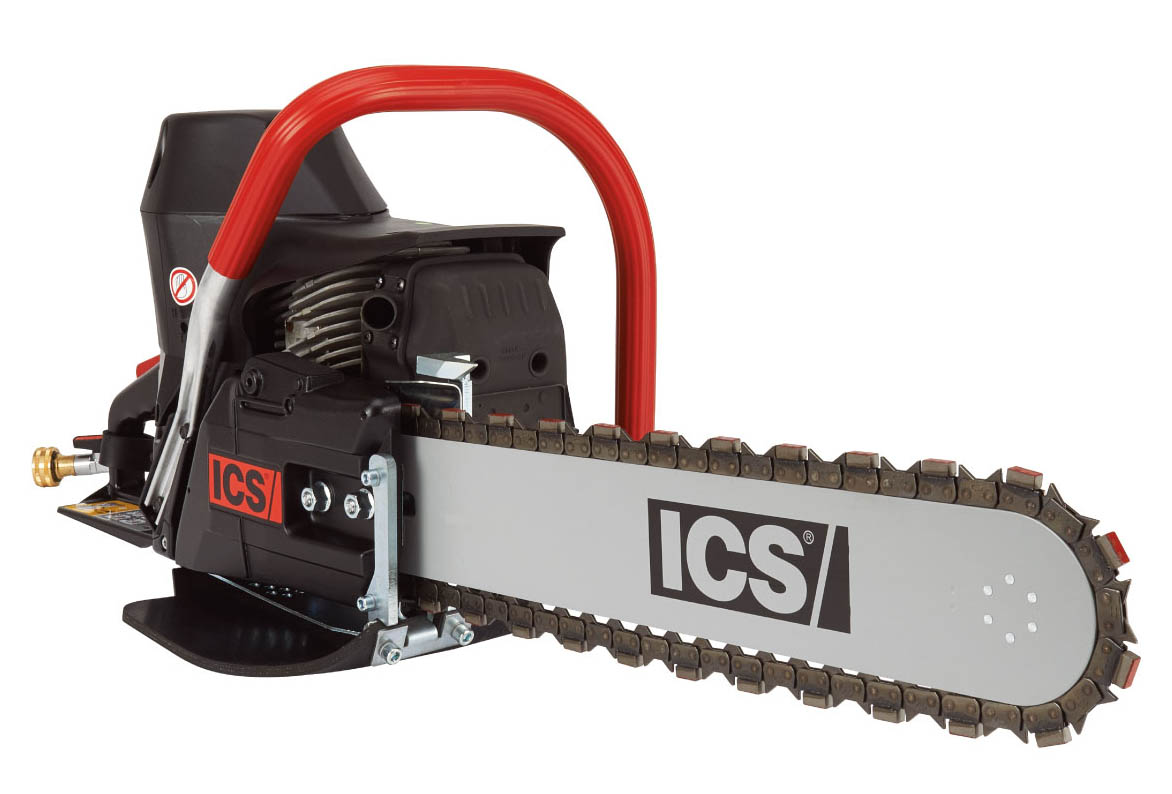

Built to meet the operation and flexibility demands of the general construction user, the 680ES stands alone in terms of reliability and value. Easy to start with a new multifunction lever to control choke, run, and stop functions. The distinctive black powerhead houses specially designed carburetion and ignition systems that work together to ensure easy starting, cooler operation and dependable performance at just about any elevation. Available with 12-inch (30 cm) and 14-inch (35 cm) guide bars and the entire line of MAX series diamond chain.
- Polyester air filter designed specifically for wet cutting,
- Operates TwinMAX™bar and chain consumables up to 14” (35cm),
- Multifunction lever controls choke, throttle advance, run and stop modes,
- Extended drive sprocket adapter offers easy chain assembly,

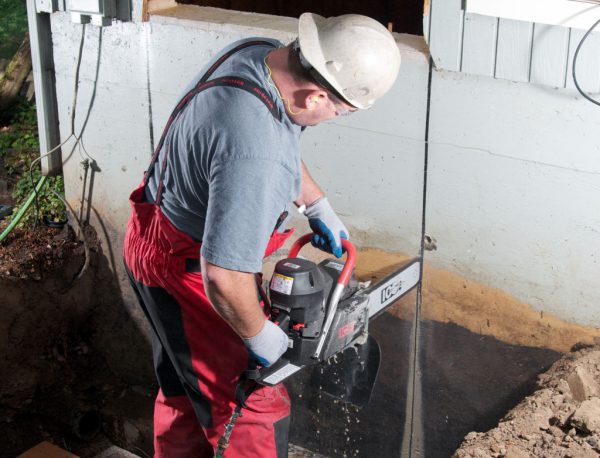

- Deep cutting solution for obstructed or small openings,
- Cut squares as small as 4” x 4” (10 cm x 10 cm),
- Easy-to-start in all weather.
| Engine Type |
2-stroke, Air Cooled |
| Displacement |
76.5 cc (4.7 cu-in) |
| Horsepower |
3.7 kW (5 hp) @ 9,500 rpm |
| Torque |
4.1 Nm (36.3 in-lbs) @ 6,500 rpm |
| Engine Speed |
11500 +/- 500 rpm (max) / 2,800 – 3,200 rpm (Idle) |
| Chain Speed at Maximum Power |
34.5 m/s (6800 ft /min) |
| Weight |
9.5 kg (21 lbs) powerhead only |
| Dimensions |
46 cm (18 in) length / 29 cm (11.5 in) height / 25 cm (10 in) width |
| Starter |
Dust and water resistant |
| Ignition |
Special water resistant electronic ignition |
| Fuel ratio |
2% (50:1) gasoline-to-oil |
| Fuel Capacity |
0.88 liter (0.23 gallon) |
| Water Supply Requirement |
Minimum: 1.5 bar (20 psi) |
| Water Flow Requirement |
Minimum: 4 lpm (1 gpm) |
| Guaranteed Sound Power Level, Lwa (1) |
117 dB(A) (Kwa=3.0 dB(A)) |
| Equivalent Sound Pressure at the Operator’s Ear Lwa |
101.0 dB(A) (K = 2.0 dB(A)) |
| Vibration, ahv eq Concrete Cutting (2) |
7.2 m/s2 (K=1.0 m/s2) Front Handle/8.5 m/s2 (K=1.0 m/s2) Rear Handle |
