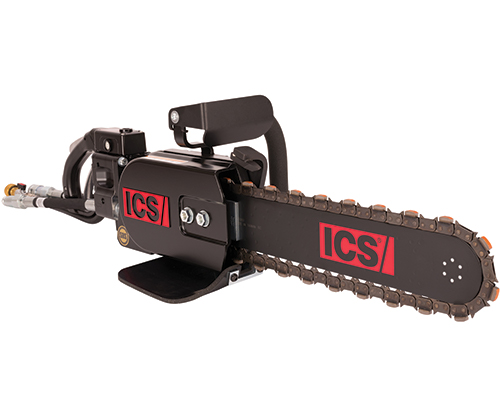

The ICS 890 Series hydraulic cutting system offers the superior strength of FORCE4® technology.
From the redesigned, more durable rear handle, to the easy-to-replace drive sprocket, this power cutter is engineered to stand up to your toughest jobs. In a package that exceeds industry standards, this sleek powerhouse is packed with features designed to make it work as hard as you do.
Product Details
- Redesigned rear handle offers improved ergonomic cutting and greater durability
- 3 scratch resistant bubble levels for more accurate vertical and horizontal cutting
- Drive sprocket design allows for quick replacement in the field
- Universal motor across 890 series power cutter platforms
- Available with 30 cm and 2.5 m hoses, 1 cm quick disconnects included for convenience
- New secondary water shut off valve for flow metering and water conservation
- Product specification data shown is rated based on maximum input conditions and efficiency assumptions and may vary dependent on power supply.
| Flush Cut? | No |
|---|---|
| Hose Whip Length | 8 ft (2.5 m) |
| Hydraulic Supply (gpm) | 8 gpm (30 lpm) |
| Hydraulic Supply (psi) | 2,500 psi (172.5 bar) |
| Operating Speed (Avg Free Running with Chain) | 5,500 sfm |
| Power Type | Hydraulic |
|---|---|
| Use Application | HDPE Asphalt Ductile Iron Brick Cast Iron Block Concrete Masonry PVC Stone AC Pipe |
| Weight, Saw Only | 25 lbs (11.3 kg) |
| Weight with Bar and Chain | 28.8 lbs (13 kg) with 15 in (38 cm) bar and chain |
| Cutting Depth | up to 25 in (63 cm) |
| Bar Length | 10 in (25 cm) 15 in (38 cm) 20 in (50 cm) 25 in (63 cm) |
| Noise Level (Power) | 107 dB(A), (K=0.2 dB(A)) |
| Chain Length | 10 in (25 cm) 15 in (38 cm) 20 in (50 cm) 25 in (63 cm) |
| Noise Level (Pressure) | 98 dB(A) KK=0.7 dB(A)) |
| Torque | 7 ft-lbs (9 Nm) |
| Horsepower | 6 hp (4.5 kW) |
| Front Handle Vibration, ahv eq Concrete Cutting | 2.0 m/s2 (K=0.1 m/s2) |
| Rear Handle Vibration, ahv eq Concrete Cutting | 6.0 m/s2 (K=1.4 m/s2) |
| Front Handle Vibration, ahv eq Pipe Cutting | 4.6 m/s2 (K=0.1 m/s2) |
| Rear Handle Vibration, ahv eq Pipe Cutting | 4.8 m/s2 (K=0.3 m/s2) |
| GPM | 8 gpm (30 lpm) |
| Water Supply (Min) | 20 psi (1.4 bar) |
| Water Flow Req (Min) | 2 gpm (8 lpm) |
