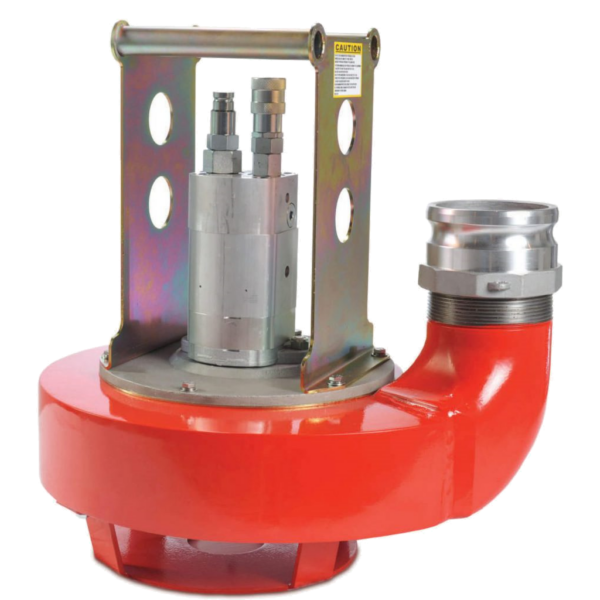

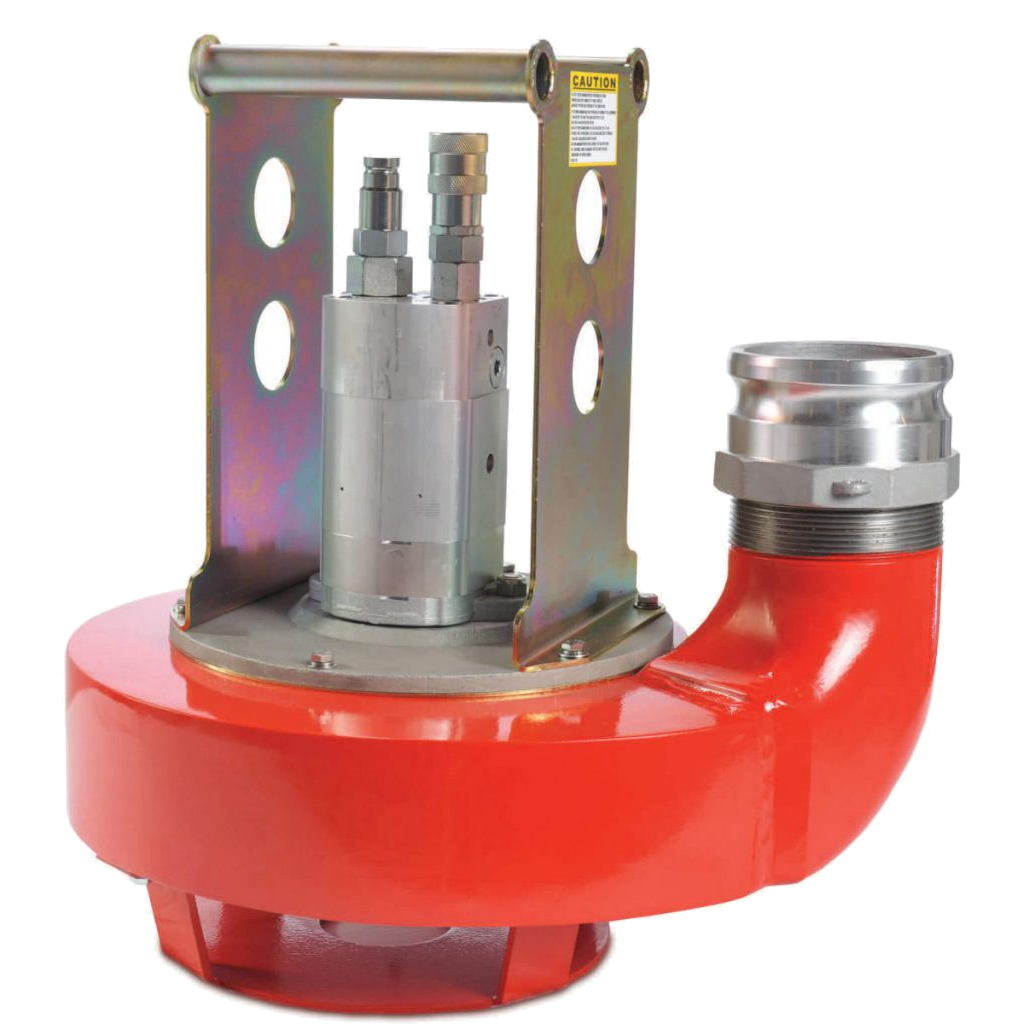

The TP40 compact submersible trash pump is a lightweight, efficient way to move large volumes of liquids that can contain sand, dirt, and gravel very quickly.
This submersible centrifugal design requires no priming and can run dry all day without damage. The direct drive requires no maintenance as all moving parts are self-lubricated with passing hydraulic fluid. A durable steel bowl and ductile iron impeller are very durable and capable of moving liquids containing up to 30% solids. If you are pumping oily sludge, septic systems, muddy trenches or even clean water this a pump for you.
The TP40 is fitted with flush face couplers that threads directly into SAE ports, No NPT hydraulic joints to weep. The TP40 Trash Pump comes with a 4 ”male NPT output port fitted to a 4” Cam Loc fitting standard.
PUMPING CAPACITY | 875 gpm (3312 lpm) |
PUMP TYPE | Trash-Sludge-Slurry-Water |
CONSTRUCTION | Steel Fabrication/Iron Impeller |
DISCHARGE | 4” Cam Loc – 3” NPT Male |
WEIGHT | 59 lbs. (26.8 kg) |
LENGTH | 19 inches (482 mm) |
WIDTH | 15 inches (381 mm) |
HEIGHT | 19 inches (482 mm) |
HYDRAULIC FLOW RANGE | 7-9 gpm (26-34 lpm) |
MAXIMUM PRESSURE | 2000 psi (138 bar) |
MAXIMUM BACK PRESSURE | 250 psi (17 bar) |
