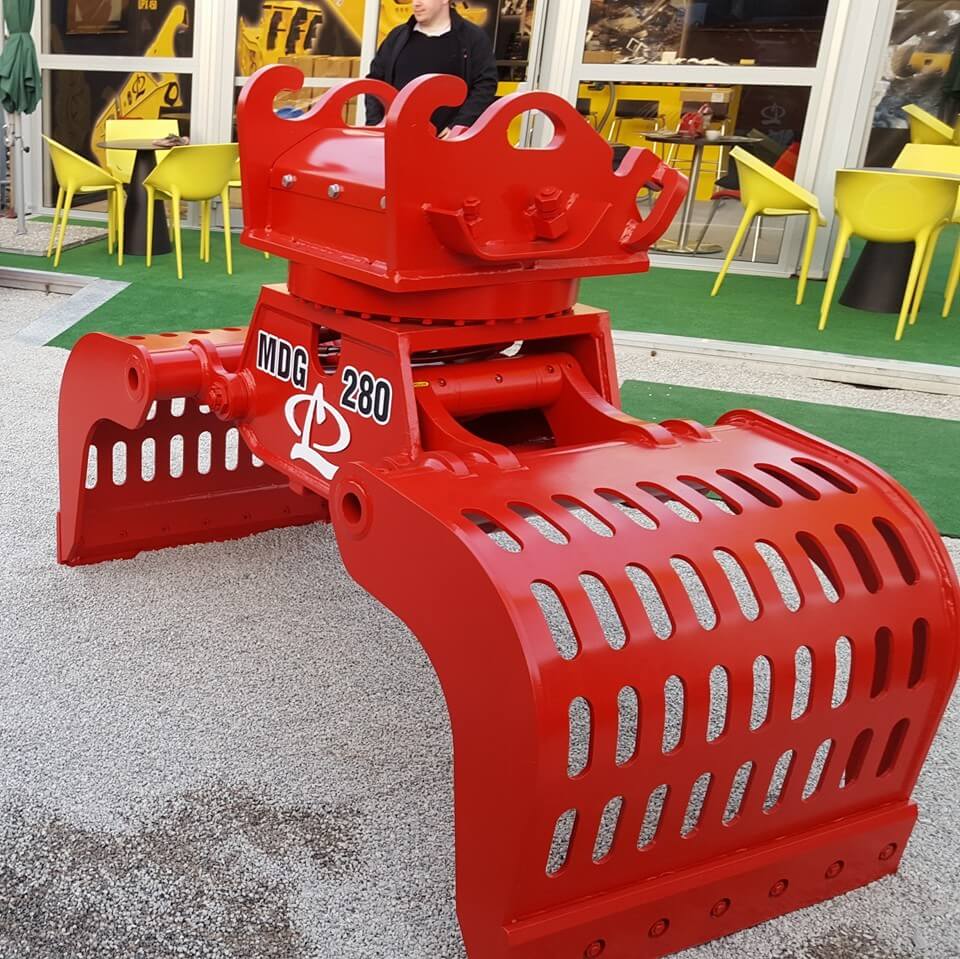

LaBounty Mobile Demolition Grapple

The LaBounty Mobile Demolition Grapple (MDG), is ideal for demolition, material handling, and sorting applications. Each MDG product features a 360° continuous rotation, heavy duty turntable, and synchronized jaws designed for severe duty applications.

Categories: ,
Model Excavator Weight
LBS
MDG Weight
LBS
Operating Pressure Max
PSI
Oil Flow Max
GPM
Oil Flow Rotation
GPM
Width
INCHES
Opening
INCHES
Capacity
YD3
MDG70 11,000-19,800 900 4,350 13 3 – 13 28 59 .26
MDG140 22,000-35,200 1,900 5,075 26 7 – 26 31 71 .52
MDG160 28,600-44,000 2,400 5,075 32 7 – 32 35 77 .78
MDG250 37,000-62,000 3,300 5,075 40 9 – 45 39 83 1.04
MDG310 55,000-83,600 4,200 5,075 48 9 – 48 47 87 1.18
MDG400 66,000-110,000 6,000 5,075 53 9 – 53 54 87 1.44
  • Demolition/dismantling of buildings.
  • Ship and aircraft demolition.
  • Scrap recycling.
  • Solid waste recycling, sorting, handling, and land clearing.
  • Handling concrete structures.
  • Wood handling.
  • 360° high torque rotation provides control when handling uneven loads.
  • Guard plate protects hydraulic system from debris.
  • Perforated jaw design enables both visibility and material control with less pass through and jamming.
  • Robust rotating group designed for demolition applications.
  • Replaceable and interchangeable bolt on blades for long life and easy maintenance.
