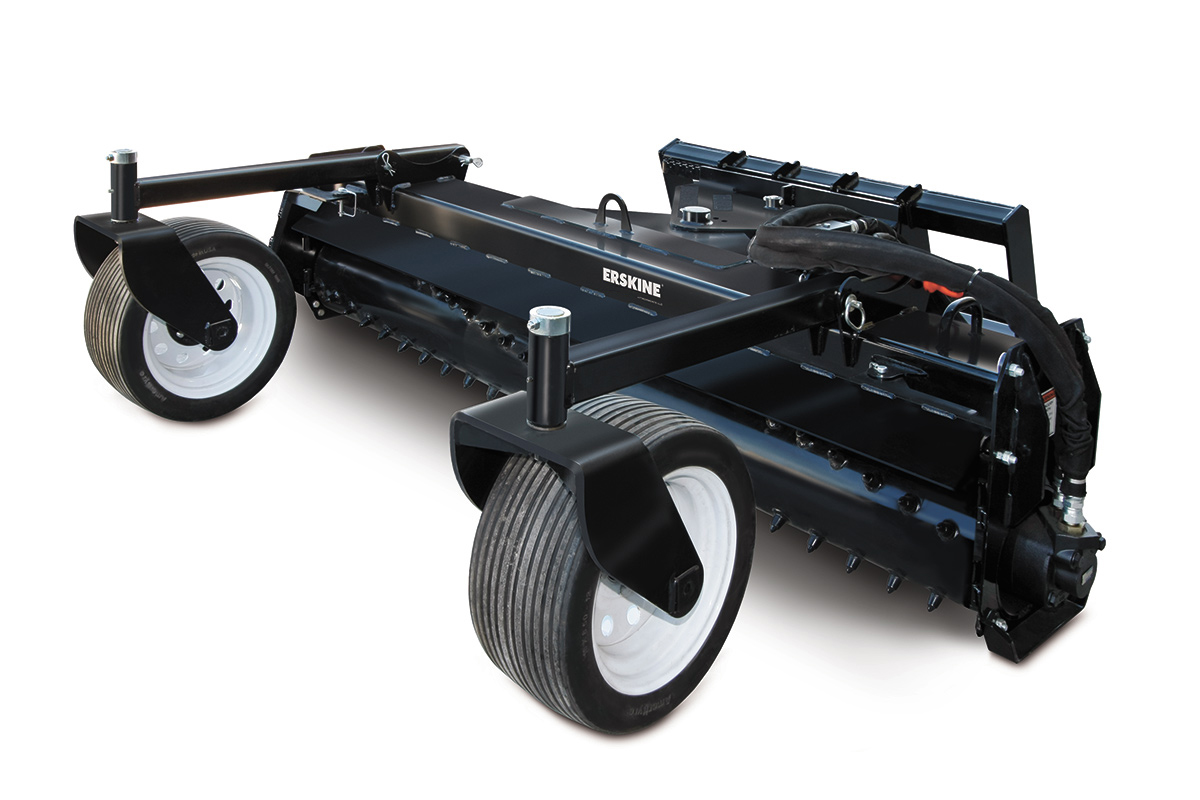

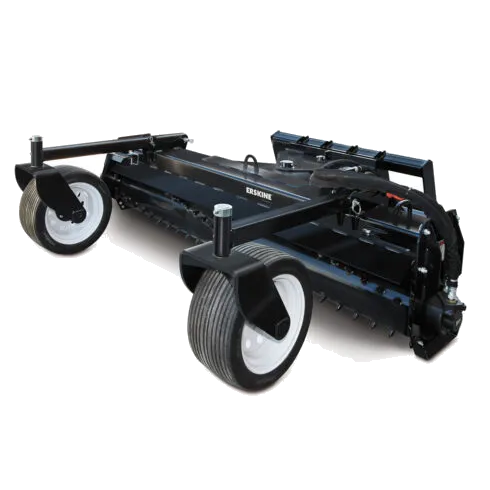

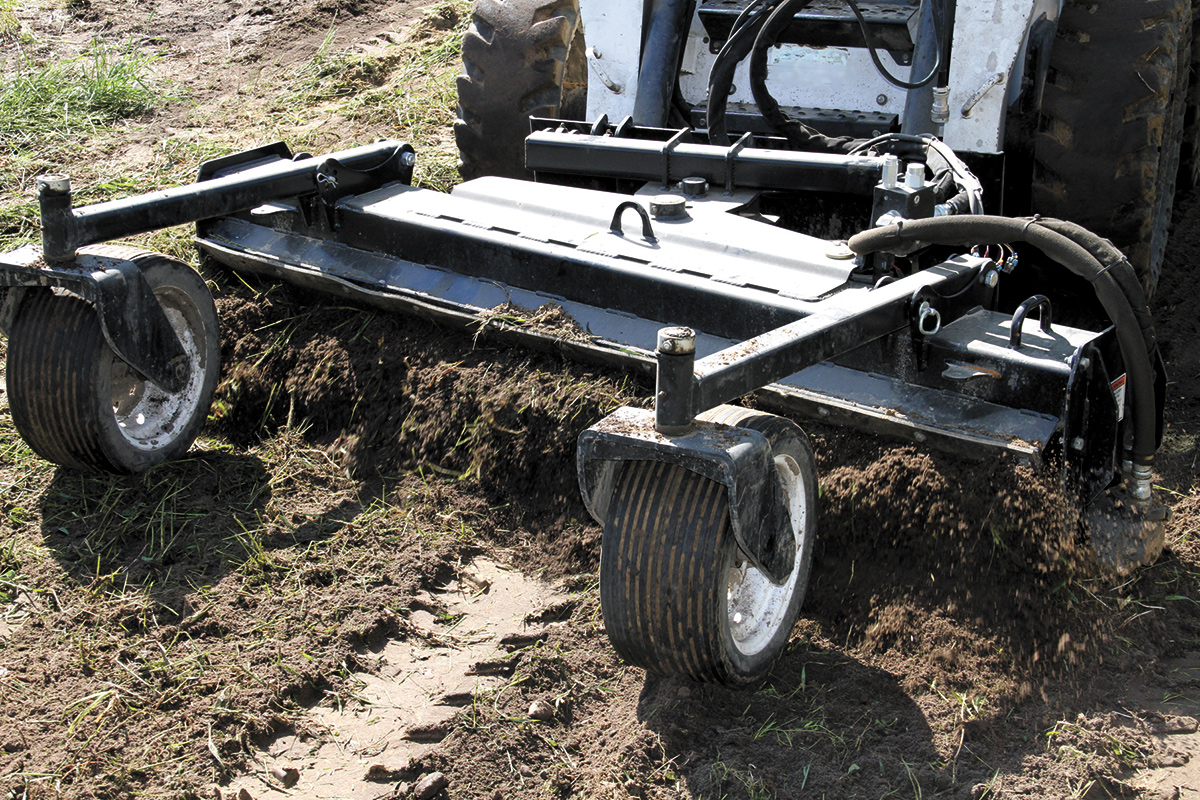

This attachment has a unique floating connection that provides automatic levelling as the unit follows the contour of the ground. Easily rake stones and debris to either side or straight ahead for easy pickup. Achieve greater ground speed with the large-diameter rotor and aggressive teeth that pulverize the soil on the go. The counter-rotating rotor action moves soil ahead while tilling. This allows you to fill in low spots and cut down high spots in one pass. Rake and till as deep as 4” to create the perfect seedbed. This unit separates rocks, tears up sod, and eliminates dirt clods for a truly professional finish. It’s the perfect attachment for your skid steer for your landscaping tool needs.
Features:
- Direct-drive motor turns large 10” rotor
- Tungsten – carbide teeth
- Power angling (optional)
- Large solid rubber tires
- Optional box end plates (Wing Kit)
Specifications
| Model | FSC72 | FSC84 | FSC96 |
|---|---|---|---|
| Part Number | 900534 | 900536 | 901382 |
| Rotor Width | 72” | 84” | 96” |
| Overall Width | 79.5” | 91.5” | 103.5” |
| Angling | Manual 25° | Manual 25° | Manual 25° |
| Wheels/Tires | 18″ x 8.5″ | 18″ x 8.5″ | 18″ x 8.5″ |
| Solid Rubber | Solid Rubber | Solid Rubber | |
| Teeth | 88 Carbide Tipped | 104 Carbide Tipped | 120 Carbide Tipped |
| Recommended Hyd. Flow | 15 – 33 GPM | 15 – 33 GPM | 15 – 33 GPM |
| Mounting Plate | Universal | Universal | Universal |
| Operating Weight (FSC) | 1,150 lb. | 1,250 lb. | 1,350 lb. |
| Options | |||
| Hydraulic Power Angling | |||
| Wing Kit | |||
| Pistol Grip Control Harness* | |||
| Loader Specific Wire Harness* | |||
| Factory Installed Couplers | |||
| *Applies to Hydraulic Model Only | |||
