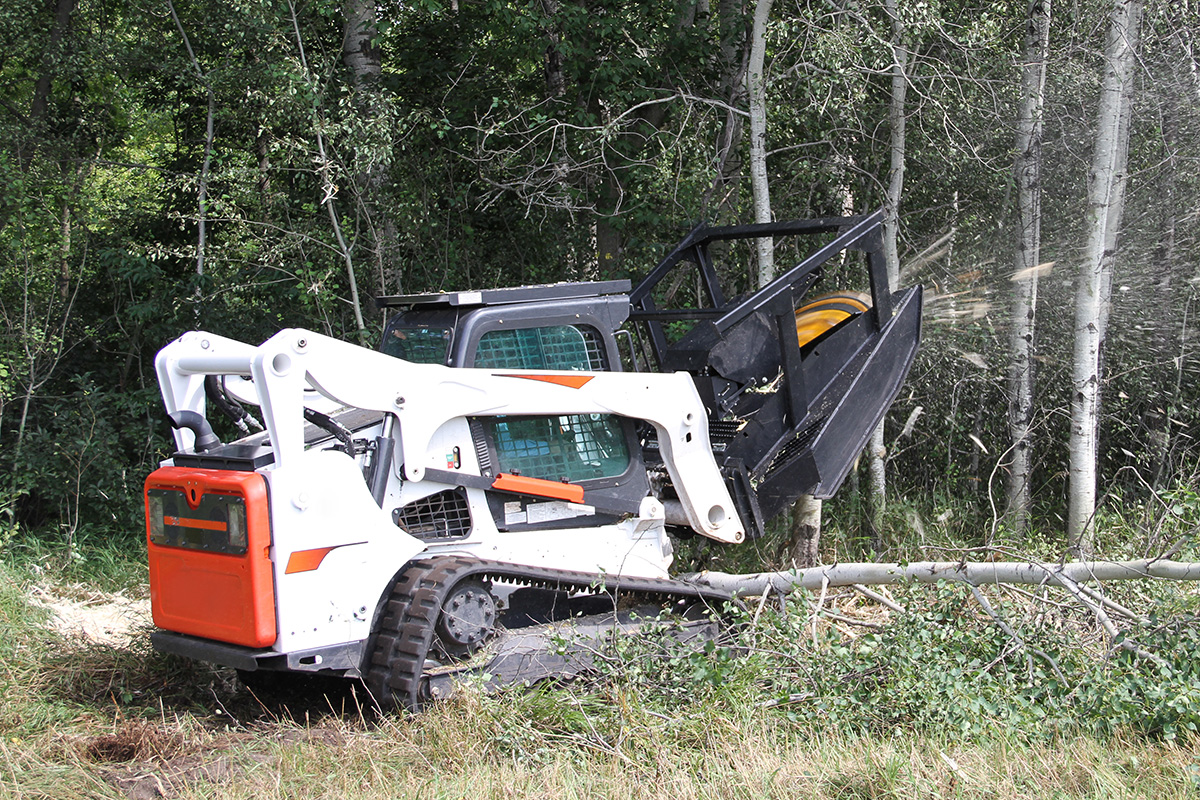

Erskine’s Forestry Mulching Mower is designed to de-forest an area and return the debris back to the environment. This mulcher attachment cuts trees up to 14” in diameter and mulches trees up to 6”. If you need a powerful, reliable mulching mower in your arsenal, you need the Erskine forestry mulcher mower.
Features:
- Parker Piston Motor is Made in the USA with the highest quality materials and featuring maximum starting torque
- Motor is covered and a storage compartment on deck stores tools such as replacement tooth ratchet
- 1,045 pounds of disc mass unleashes massive amounts of rotational energy to destroy trees and brush
- 1.5” thick disc is the most durable in the industry and consists of one 3/4” plate and two 3/8” plates
- Top deck is made of GR100 steel for maximum strength and durability
- Curved shroud at disc rear creates a smooth, consistent mulching chamber increasing efficiency
- Replaceable carbide bullet teeth are designed to withstand contact with rocks and ground debris
- Perimeter cutting teeth are designed to rotate as they wear and easily replaceable
- Tooth holders are heat treated to withstand tough wear and tear with no cracking
- Tooth protector fins are made 3/4” AR400 steel to protect outer teeth from direct impact
- Front deflector is floating on a pivoted joint to flip up so it’s not damaged when encountering obstacles and can also be pinned up during maintenance
- Open front mower easily feeds to the disc and increases visibility
- Exclusively designed slanted push bar positioned forward cuts brush and small trees, horizontally to guide larger trees into mulching chamber, and prevents trees from hanging on deck after cutting
- 4” diameter bearing shaft easily carries the strong forces and weight of disc and has a metal shaft seal protector that turns with the output of the shaft for ultimate protection of the shaft seal
- Exclusive rasp bars under deck create a fine mulch to minimize plugging and clogging
- Bolting flange uses 12, grade 9 bolts to spread-out stress to help decrease maintenance work
Specifications:
Model | Mulching Mower |
---|---|
Part Number | 901352 |
Motor Type | Fixed Displacement Piston |
Cutting Capacity | Up to 14″ |
Mulching Capacity | Up to 6″ |
Operating Weight | 2,750 lb. |
Height | 43″ |
Width | 70″ |
Length | 73″ |
Cutting Width | 60″ |
Disc Thickness | 1.5″ |
Bearing Carrier | Oil Bath |
Output Shaft Diameter | 4″ |
Flange Diameter | 12.38″ |
Flange Bolts | (12) 3/4″ Grade 9 |
Deck Top Material | 1/2″ Grade 100 |
Disc Mass With Teeth | 1,045 lb. |
Skid Shoe Material | 1/2″ AR400 |
Flow Rate | 32-45 GPM |
Pressure Range | 3,000-6,000 PSI |
RPM At 40 GPM | 1,200 |
Bottom Carbide Teeth Qty. | 16 |
Edge Beaver Teeth Qty. | 12 |
Top Beaver Teeth Qty. | 10 |
Case Drain Line | Required |
