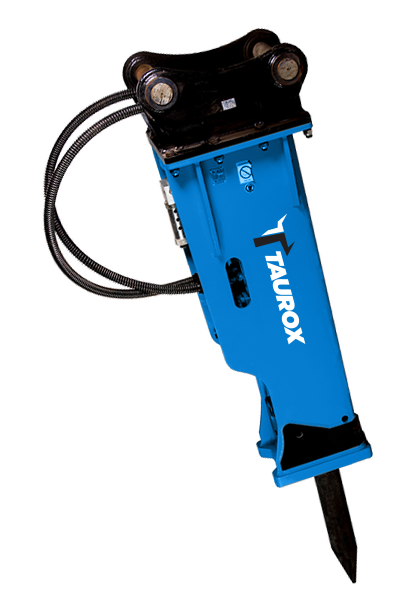

Taurox’s hydraulic excavator breakers are designed to provide efficiencies, minimize machine wear and improve productivity. Our hydraulic hammers are effective for a range of applications, including rock, concrete and slab breaking, road, sidewalk and curb construction, demolitions, excavations, and more.
Backed by the most comprehensive warranty in the industry. You can rest assured knowing your new equipment is backed up by our comprehensive 3-year warranty serviced by Accudraulics.
Hydraulic Hammer / Rock Breaker Highlights:
- Available for 1 – 60 Ton machines
- Shock Absorbing Design
- Noise Reduction Technology
- 3 Year Factory Warranty
- Meets ISO 9001 Standards
- Parts Available
| Unit | THB-13 | THB-25 | THB-47 | |
| Carrier Weight | ton | 1-3 | 2-5 | 4-7 |
| Operating Weight | lb | 280 | 335 | 650 |
| Oil Flow Range | gpm | 5-8 | 7-13 | 11-18 |
| Operating Pressure | psi | 1310-1740 | 1310-1740 | 1600-2030 |
| Impact Rate | bpm | 700-1200 | 600-1100 | 500-900 |
| Chisel Diameter | in | 1.75 | 2 | 2.75 |
| Unit | THB-69 | THB-714 | THB-1116 | |
| Carrier Weight | ton | 6-9 | 7-14 | 1-16 |
| Operating Weight | lb | 830 | 1260 | 1900 |
| Oil Flow Range | gpm | 13-24 | 16-26 | 21-29 |
| Operating Pressure | psi | 1740-2180 | 1890-2320 | 2180-2470 |
| Impact Rate | bpm | 400-800 | 400-800 | 350-700 |
| Chisel Diameter | in | 2.75 | 3.3 | 4 |
| Unit | THB-1622 | THB-2029 | THB-3040 | |
| Carrier Weight | ton | 16-22 | 20-29 | 30-40 |
| Operating Weight | lb | 3310 | 4025 | 5810 |
| Oil Flow Range | gpm | 26-40 | 32-48 | 47-63 |
| Operating Pressure | psi | 2320-2610 | 2320-2610 | 2320-2610 |
| Impact Rate | bpm | 350-600 | 350-500 | 300-450 |
| Chisel Diameter | in | 5.2 | 6.1 | 6.1 |
| Unit | THB-3545 | THB-4560 | ||
| Carrier Weight | ton | 35-45 | 45-60 | |
| Operating Weight | lb | 6285 | 8795 | |
| Oil Flow Range | gpm | 53-69 | 55-77 | |
| Operating Pressure | psi | 2320-2610 | 2320-2610 | |
| Impact Rate | bpm | 250-400 | 200-350 | |
| Chisel Diameter | in | 6.1 | 7 | |
