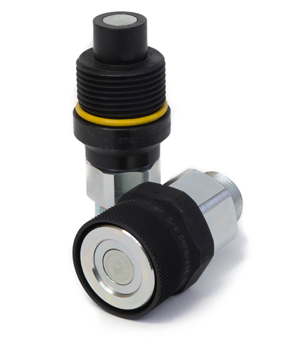

Stucchi VEP Series Flat Face Hydraulic Couplers

The VEP Series is a popular solution for hydraulic circuit applications subject to high-pressure impulses and circuits which experience high residual or trapped pressure in a line. The thread-to-connect design eliminates premature wear or brinelling, a patented internal valve allows connection/disconnection with high residual pressures, and the flat face design avoids loss of hydraulic fluid and contamination into the circuit. A yellow o-ring indicator makes the VEP series even easier to work with.

FEATURES
  • Size range: 1/4” thru 2”
  • Port options: NPTSAEBSPORFS
  • Interchanges with VEPHD, VEPHDL Series
  • Connect/disconnect up to 25 MPa/3625 psi residual pressure
  • Working pressure: 35-60 MPa/5075-8700 psi range
  • Eliminates brinelling, reduces leakage
  • Saves time changing tools
APPLICATIONS
  • All construction equipment applications with higher pressure requirements or connection/disconnection issues with tool attachments under residual pressure
  • All large equipment needing junction points in circuit: cranes, drilling machines, oil field, well head drives, porta-power
  • Excavators w/ auxiliary line for attachments: thumbs, grapples, hammers, compactors/hopaks

How to Upgrade Your Bobcat 870 Skid Steer Auxiliary Hydraulics to High Flow

Skid steer machines like a Bobcat 870 skid loader often experience overheating during heavy-duty applications such as mulching and land clearing. The main source is often the OEM equipped couplers. Stucchi offers a solution to convert your skid loader to use our heavy-duty, thread to connect VEP series.
