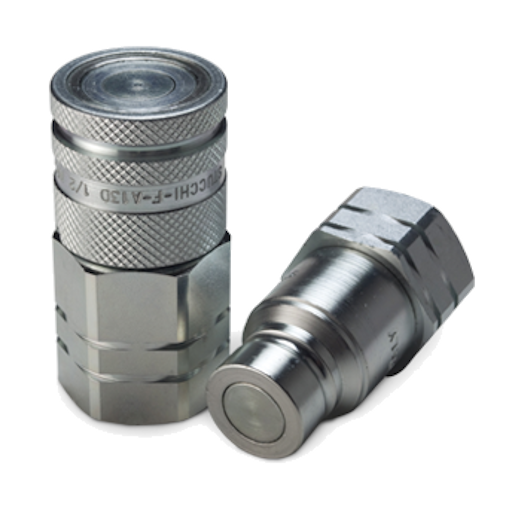

Stucchi Flat Faced

Stucchi’s flat face couplers are ideal in many environments and applications, including any process where fluid loss or contamination must be minimized or eliminated, environments where static pressure gets locked into the system, or low-to-medium and heavily corrosive environments. Flat face coupling products improve many applications including mobile, construction, agricultural, mining operations, and many additional processes.

Body Size 1/8″, 1/4″, 3/8″, 1/2″, 5/8″, 3/4″, 1″, 1 1/4″, 1 1/2″
Material Carbon
Port Options BSP/DIN
Port Size 1/8″, 1/4″, 3/8″, 1/2″, 5/8″, 3/4″, 1″, 1 1/4″, 1 1/2″
Valve Style Flat Face
Working Pressure Up to 5000. 5000-9000
  • Size range: 1/8” thru 1 1/2”
  • Port options: BSP, DIN
  • Interchanges with ISO 16028
  • Working pressure: 27-42 MPa/3915-6090 psi
  • Modular structure for multiple port option
  • Hardened steel, 12 to 20 balls reduce brinelling
