hydraulic concrete saw handheld wall cuts

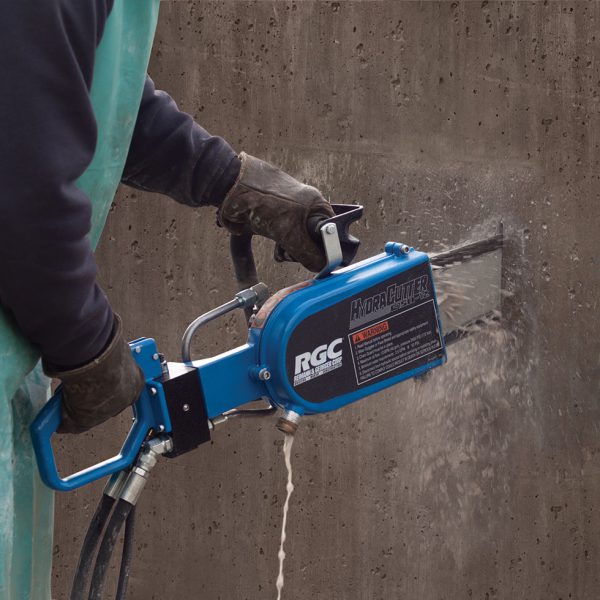

RGC C150 Hydraulic Concrete Saw

RCS S14 - HydraSaw c100 rgc concrete saw

Categories: ,

The C150TM-8 is equipped with a powerful hydraulic motor that requires up to 8 gpm @ 2000-2500 psi. 11.7 hp @ 8 gpm and 2500 psi. The C150TM-12 is equipped with a powerful hydraulic motor that requires up to 12 gpm @2000-2500 psi. 17.4 hp @ 12 gpm and 2500 psi. Makes clean plunge, bottom, notch, trim, and corner cuts without overcutting.

  • Cast aluminium ergonomic frame enhances cutting precision while reducing operator fatigue.
  • Cushioned handles and balanced weight distribution enhance cutting with minimal force.
  • Dual function trigger starts and stops tool and water simultaneously.
  • Trigger lockout safety feature is standard.
  • Water flow system delivers maximum lubrication, cooling, and abrasive flushing through internal water passages in the bars.
  • Roller nose sprocket maximizes chain and bar life.
  • 15 in. bar provides full 15 in. cutting depth.
  • 20 in. bar provides full 20 in. cutting depth.
  • 30 in. bar provides full 30 in. cutting depth.
  • Choose from Diamond segmented chains: S-series chains cut medium soft to very hard aggregate with moderate to heavy steel rebar OR the L-series chains cut green concrete, brick, and concrete block without steel rebar.
  • Can be powered by an RGC or HydraPak or any other compatible power source.

Specifications

  • The C150-8 with a 15” bar requires 8 gpm oil flow at 2000 – 2500 psi oil pressure, water flow of 2-1/2 gpm and 50 psi. The C150-8 weighs approximately 30 lbs.
  • The C150-8 with a 20” bar requires 8 gpm flow at 2000 – 2500 psi oil pressure, water flow of 2-1/2 gpm at 50 psi. The C150-8 weighs approximately 30 lbs.
  • The C150-12 with a 15 in” bar requires 12 gpm oil flow at 2000 – 2500 psi oil pressure, water flow of 2-1/2 gpm and 50 psi. The C150-12 weighs approximately 30 lbs.
  • The C150-12 with a 20” bar requires 12 gpm oil flow at 2000 – 2500 psi oil pressure, water flow of 2-1/2 gpm and 50 psi. The C150-12 weighs approximately 30 lbs.
  • The C150-12 with a 30” bar requires 12 gpm oil flow at 2000 – 2500 psi oil pressure, water flow of 2-1/2 gpm and 50 psi. The C150-12 weighs approximately 30 lbs.
