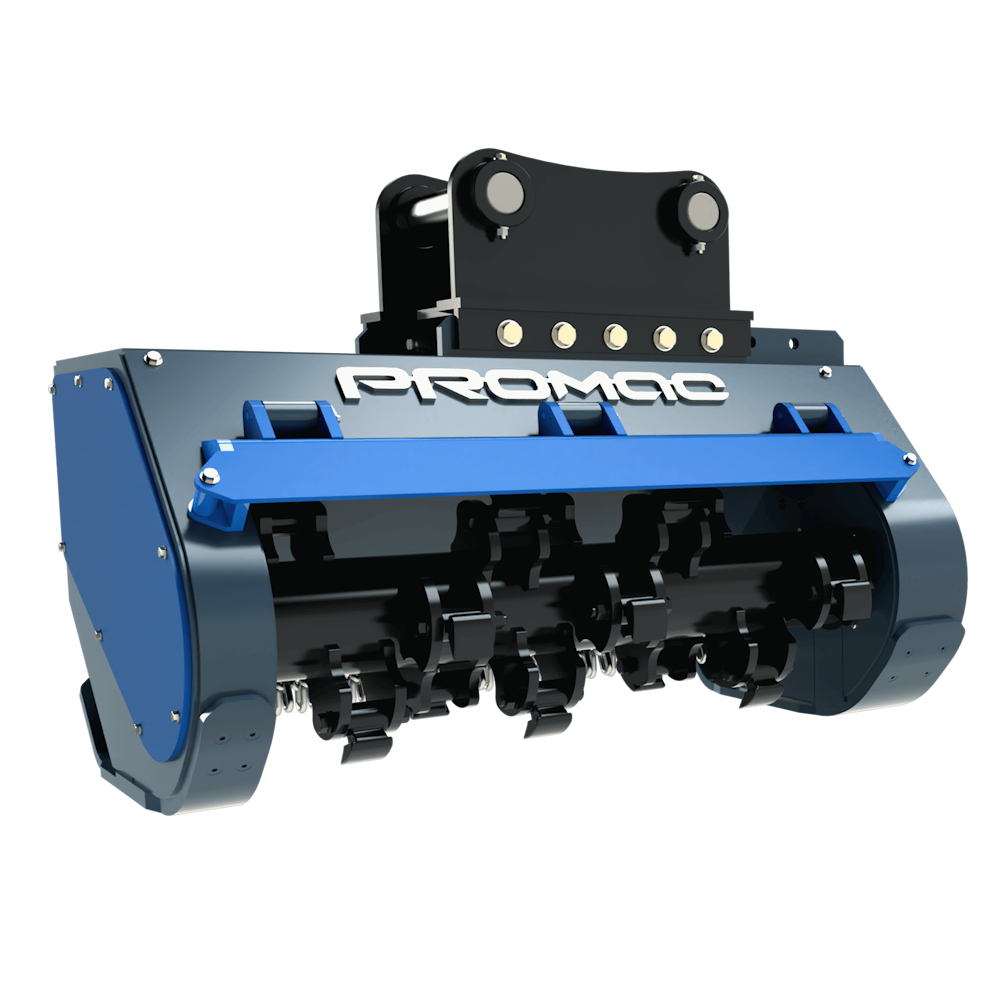

HDF 36 | HDF 48 | HDF 60 | |
---|---|---|---|
Excavator size (tons) | 13+ | 16+ | 20+ |
Cut width | 36″ | 48″ | 60″ |
Approx. weight | 2800lb | 3000lb | 3200lb |
Color | Metallic grey / blue | Metallic grey / blue | Metallic grey / blue |
Motor size (cc) | 80 | 107 | 107 |
Motor type | Bent Axis Piston | Bent Axis Piston | Bent Axis Piston |
Flow min (GPM) | 35 | 45 | 45 |
Flow pressure (PSI) | 4000 | 4000 | 4000 |
Tooling type | Flail Hammer | Flail Hammer | Flail Hammer |
Tooling number | 24 | 26 | 28 |
- Suitable for heavy duty mulching applications
- Powerful and efficient hydraulic piston motor
- Available in 36, 48 and 60″ cutting widths
- Multiple rotor and tooling options available
- Heavy-duty, fully welded, structural frame
- Suitable for a 13-30+ ton excavator
- Optional features and customizations available
