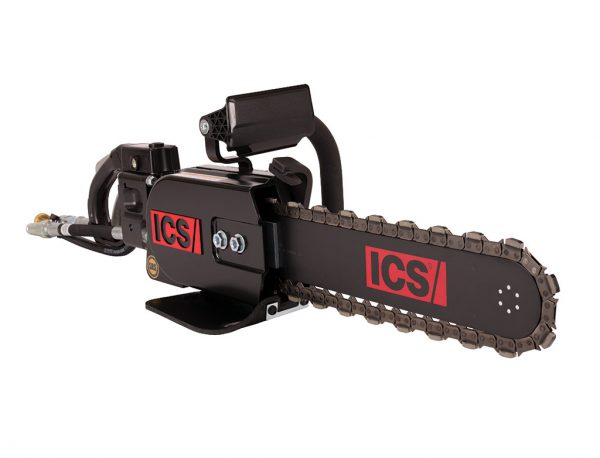

ICS Hydraulic Chain Saw for Concrete

Call for Pricing

From the redesigned, more durable rear handle with the easy to replace drive sprocket, the ICS 890F4 saw is engineered to stand up to your toughest jobs.

Categories: ,

A Concrete Saw that Gets ‘Er Done

From the redesigned, more durable rear handle with the easy to replace drive sprocket, the ICS 890F4 saw is engineered to stand up to your toughest jobs. In a package that exceeds industry standards, this sleek powerhouse is packed with features designed to make it work as hard as you do.

Features

  • Redesigned rear handle offers improved ergonomic cutting and greater durability
  • 3 scratch resistant bubble levels for more accurate vertical and horizontal cutting
  • New drive sprocket design allows for quick replacement in the field
  • Universal motor across 890 series saw platforms and compatible with ICS 880 series saw
  • Available with 1’ and 8’ hoses; ½” quick disconnects included for convenience
  • New secondary water shut off valve for flow metering and water conservation
Weight27.3 lbs (12.4 kg) with 15-inch (38 cm) bar and chain
Bar LengthUp to 25 inches (63 cm)
Motor Speed6100 rpm
Powerhead Dimensions23 inches (58.5 cm) length; 10.5 inches (26.5 cm) height; 9.5 inches (24 cm) width
Torque122 in-lbs
Horsepower6 hp (4.6 kW)
Hydraulic Supply8 gpm (30 lpm), 2500 psi (172.5 bar)
Noise Level107 dB @ 3 ft (1 m)
Vibration Level2 meters/second; 2 (front handle); 6 meters/second 2 (rear handle)
Water SupplyMinimum 20 psi (1.5 bar)

Weight27.3 lbs (12.4 kg) with 15-inch (38 cm) bar/chain and 1’ (.3 m) hose whips)
Bar LengthUp to 25 in (63 cm)
Motor Speed6500 rpm
Powerhead Dimensions23 in (58.5 cm) length; 10.5 in (26.5 cm) height; 9.5 in (24 cm) width
Torque170 in-lbs (19.2 Nm)
Horsepower8 hp (6 kW)
Hydraulic Supply12 gpm (45 lpm), 2500 psi (172.5 bar)
Noise Level98 dB @ 3 ft (1 m) (Sound pressure level); 107 dB @ 3ft (1 m) (Sound power level)
Noise Level2.0 m/second2 (front handle); 6.0 m/second2 (rear handle)
Water SupplyMinimum 20 psi (1.5 bar)
