Erskine Vibratory Packer for Skid Steers – 72 Smooth and 72 Padded Foot

Category:

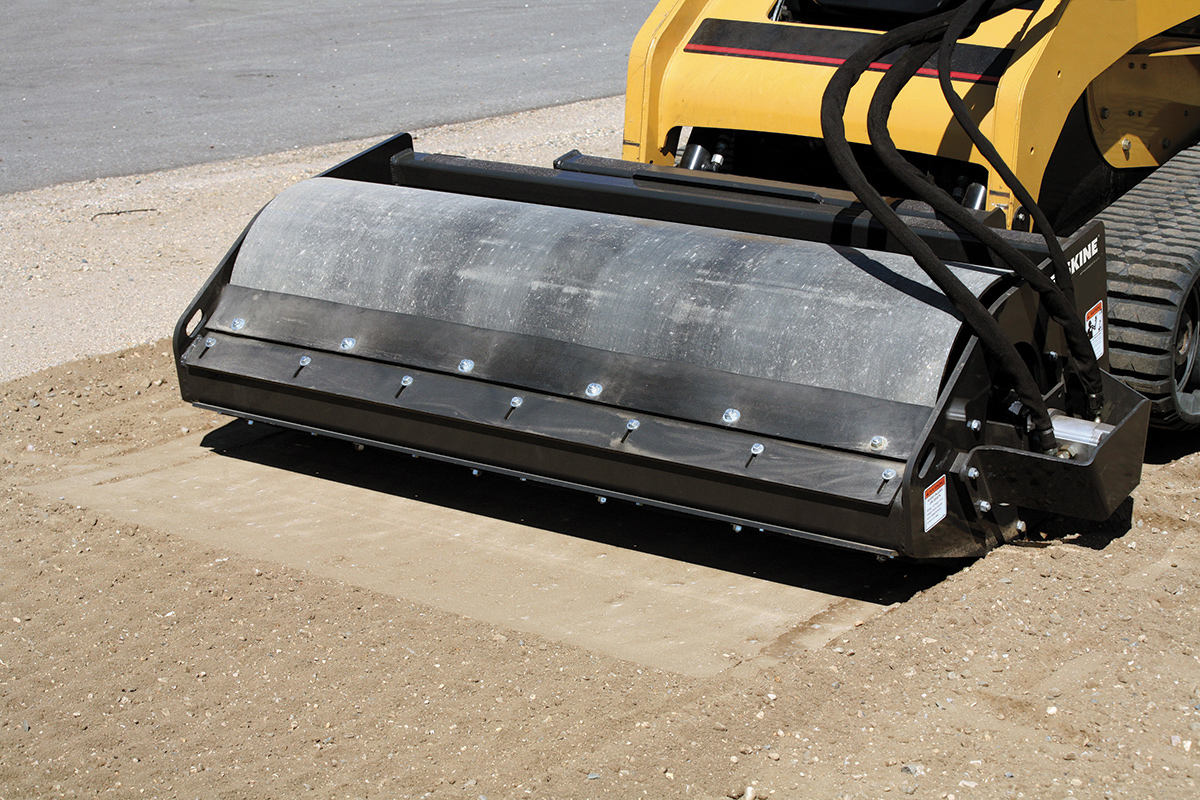

Perfect for compact flatwork, trenches and asphalt patching jobs while moving forward or in reverse. Offset drum design compacts next to sidewalks, walls or curbs. Drum oscillation keeps the roller in contact with the surface on uneven terrain.

Features

  • Offset drum design allows the right side of the roller to extend past the machine. This is very useful when compacting next to sidewalks, walls, or curbs,
  • Durable one-piece drum for extra strength,
  • Dual-direction vibration motor permits compaction traveling in either direction,
  • Drum rubber isolation mounts reduce vibration transfer to loader and operator,
  • The solid shaft running the full length of the drum is equipped with 4 greasable bearings.

SPECIFICATIONS

Model72 Smooth72 Padded Foot
Part Number900722900723
Operating Weight1,720 lb.1,870 lb.
Height24”27.5”
Width84”84”
Length42”42”
VPM2,000 @ 18 GPM2,000 @ 18 GPM
Flow Range11-22 GPM11-22 GPM
Dynamic Force4,150 lb.4,100 lb.
Amplitude.06”.05”
Compacting Energy80 lb./in.290 lb./in.
Oscillation+/- 15°+/- 15°
Case DrainRequiredRequired
Options
Case Drain Coupler
Factory Installed Couplers
