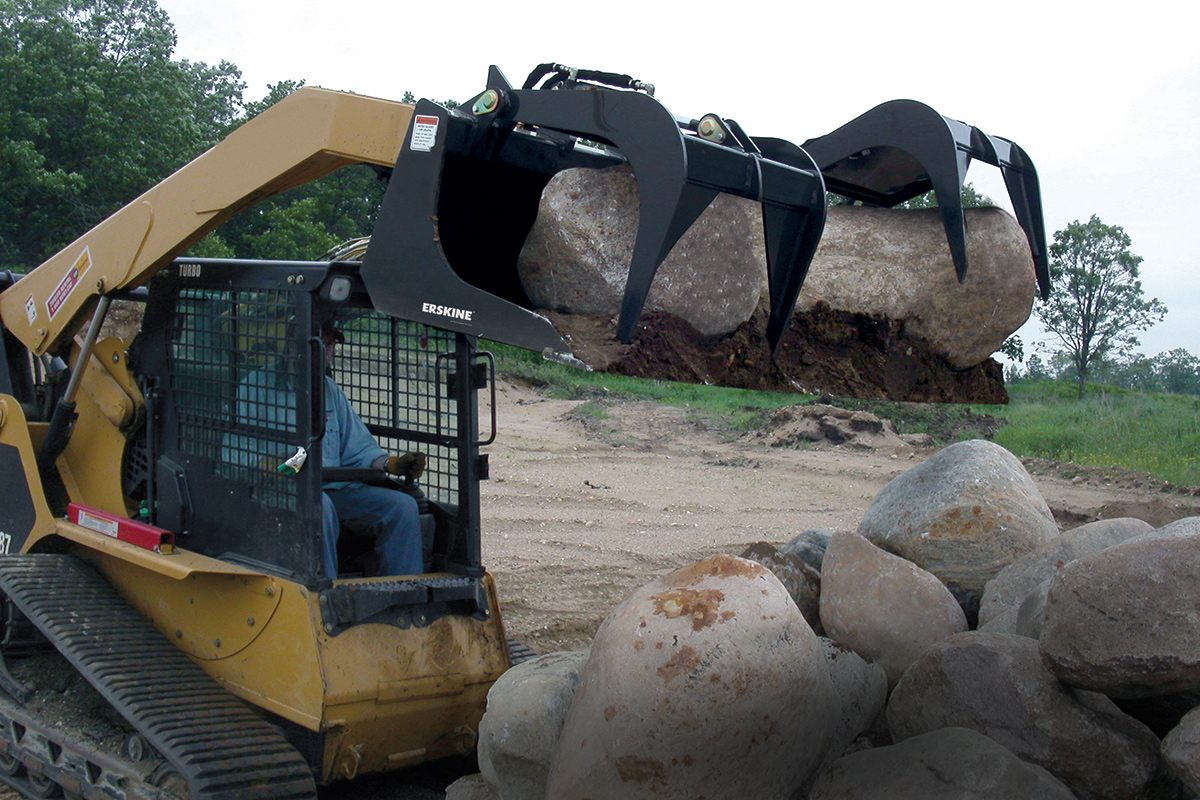

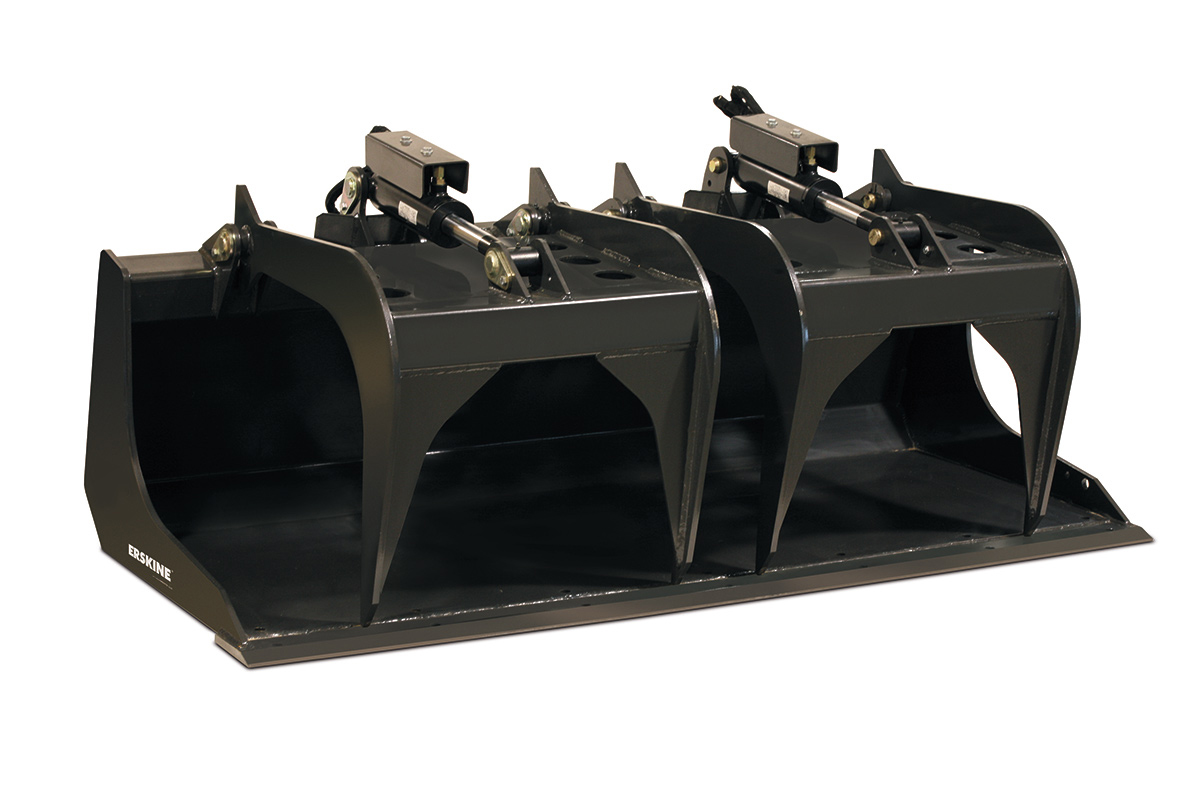

This Industrial Grapple Bucket is a wonderful tool for moving all sorts of material and earth. Sand, dirt, rocks, mud, brush, logs, there’s really nothing that this grapple bucket can’t move. Two independent heavy-duty grapples powered by 3,000 lb. hydraulic cylinders secure uneven and odd-shaped loads. Simply a great all-around attachment for almost any job.
- The heavy-duty tool moves difficult to handle material, such as scrap and waste, quickly and easily,
- Constructed of 1/2” high-strength steel and 7 gauge material,
- 2 – 3,000 lb. cylinders.
| Model | 66” | 72” | 84” |
|---|---|---|---|
| Part Number | 900611 | 900612 | 900614 |
| Shipping Weight | 980 lb. | 1,010 lb. | 1,070 lb. |
| Operating Weight | 930 lb. | 960 lb. | 1,020 lb. |
| Width | 68” | 74” | 86” |
| Height with Teeth Open | 28.19” | 28.19” | 28.19” |
| Maximum Opening | 40.36” | 40.36” | 40.36” |
| Hydraulic Cylinders | 3″ x 6″ (2) | 3″ x 6″ (2) | 3″ x 6″ (2) |
| Steel Construction of Upper Teeth | Hi-strength | Hi-strength | Hi-strength |
| Options | |||
| Bolt-on Cutting Edge | |||
| Bolt-on Replaceable Tooth (hardware inc.) | |||
| Teeth Bar | |||
| End Plates | |||
| Factory Installed Couplers |
