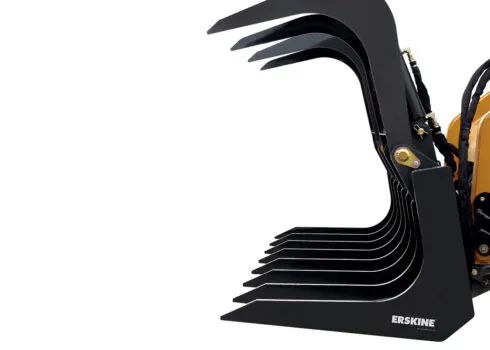

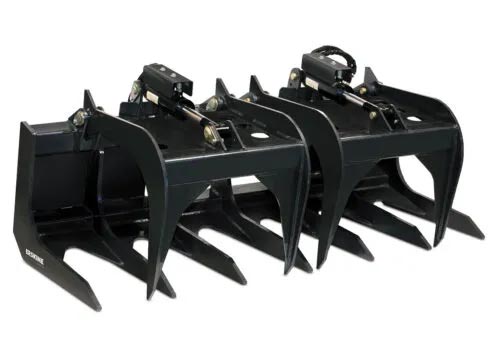

Erskine Heavy Duty Tine Grapple

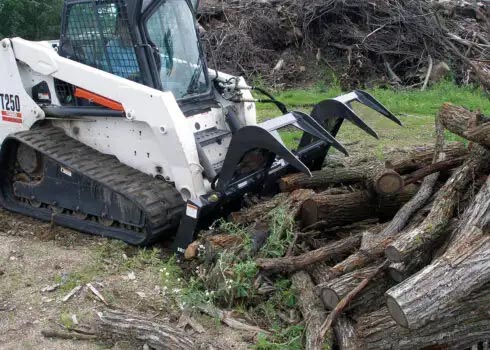

This reinforced grapple is perfect for picking up concrete, logs, rocks, and demolition debris. This grapple’s unique, heavy-duty design allows the operator to handle any odd-shaped material utilizing its heavy-duty tines and powerful independent dual grapples.

Features

  • Designed for the most powerful skid steers
  • Our universal quick attach plates fit most skid steers
  • Grapple bottom constructed of 3/4” T-1 steel
  • (2) – 3,000 lb. cylinders
  • 31” tine length
  • 12” tooth spacing

Specifications

Model 72” 84”
Part Number 900602 900604
Shipping Weight 950 lb. 1,010 lb.
Operating Weight 900 lb. 960 lb.
Width 72.75” 84.75”
Width Between Bottom Teeth 12” 12”
Tine Length 31” 31”
Height with Teeth Closed 29.5” 29.5”
Maximum Height with Teeth Open 45.48” 45.48”
Maximum Opening 36.43” 36.43”
Grapple Teeth (lower) 7 8
Hydraulic Cylinders 3″ x 6″ (2) 3″ x 6″ (2)
Steel Construction of Upper Teeth Hi-strength Hi-strength
Steel Construction of Lower Teeth T-1 T-1
