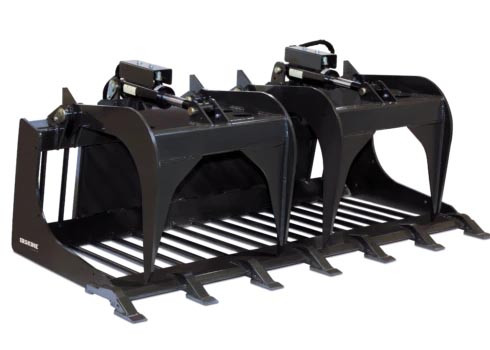

The Grapple Rod Bucket is the perfect piece of equipment to dig or root out and grab difficult material, while sifting out unwanted debris. Replaceable cast shanks with pin-on heat treated replaceable tips adds to the life and economic viability of this machine. Heavy-duty 7/8” rods are spaced 3 1/8” apart so larger items will stay in the grapple while loose dirt or dust falls through. Two heavy-duty independent grapples powered by two 3,000 lb. cylinders, that are shielded to prevent damage, power this monster for the largest jobs.
Features
- Rugged tool great for landscaping, demolition, roots, rocks, brush, debris, and other difficult-to-grasp material
- Designed for digging through the dirt to pick up unwanted material, leaving dirt behind
- Excellent tool for digging and pulling out materials from demolition work
- Clears, combs, and grooms while screening material
- Clear, dig, extract, grab, and sift all-in-one tool
- Protective covers on hydraulic cylinders
(standard equipment)
Specifications
| Model | 60” | 68” | 76” |
|---|---|---|---|
| Part Number | 900662 | 900664 | 900666 |
| Operating Weight | 950 lb. | 1,000 lb. | 1,050 lb. |
| Operating Weight | 900 lb. | 950 lb. | 1,000 lb. |
| Width | 62” | 70” | 78” |
| Width Between Rods | 3.125” | 3.125” | 3.125” |
| Width Between Lower Teeth | 8.50” | 9.75” | 9.25” |
| Height (with teeth closed) | 27.385” | 27.385” | 27.385” |
| Height (with teeth open) | 48.34” | 48.34” | 48.34” |
| Maximum Opening | 41.12” | 41.12” | 41.12” |
| Grapple Teeth Lower | 7 | 7 | 8 |
| Hydraulic Cylinders | 3″ x 6″ (2) | 3″ x 6″ (2) | 3″ x 6″ (2) |
| Steel Construction of Teeth | Hi-strength | Hi-strength | Hi-strength |
