skid steer cold planer

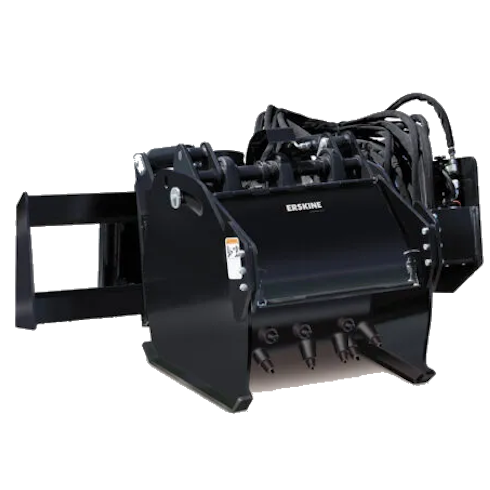

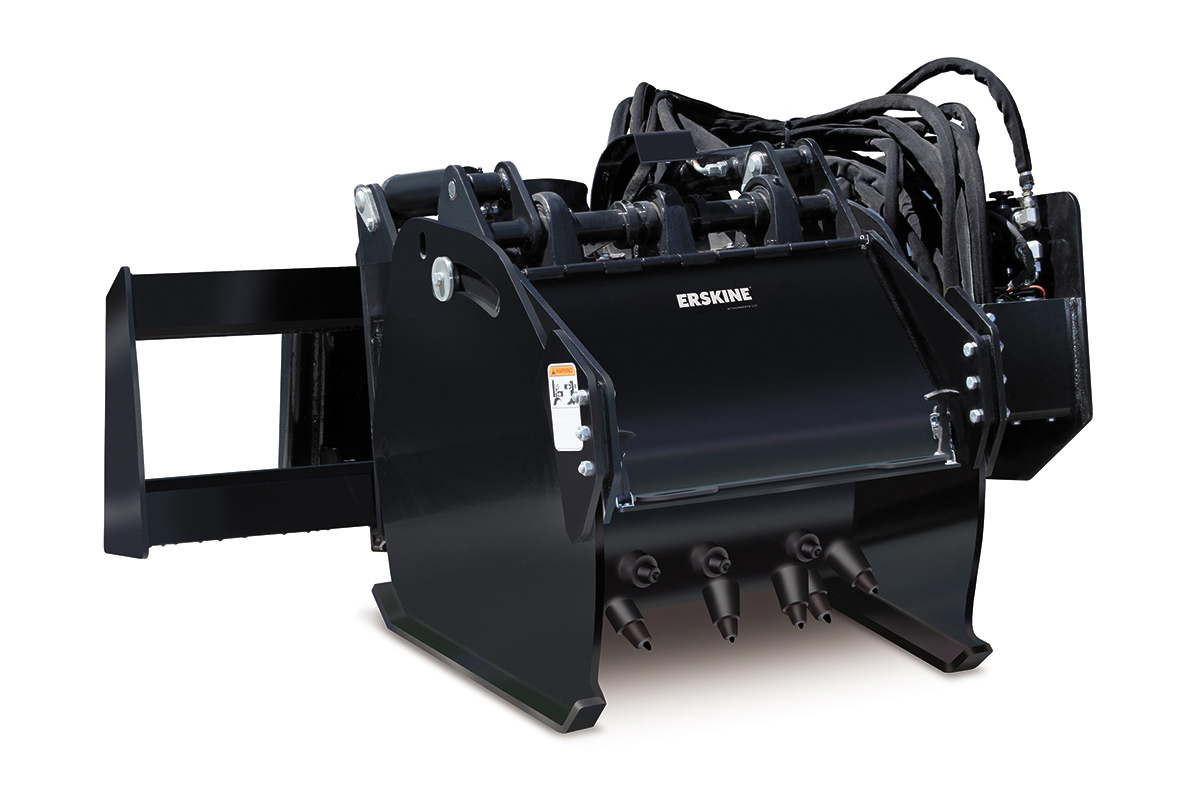

Erskine Standard Duty Planer

stanley underwater uw12 hydraulic flat face coupler stucchi

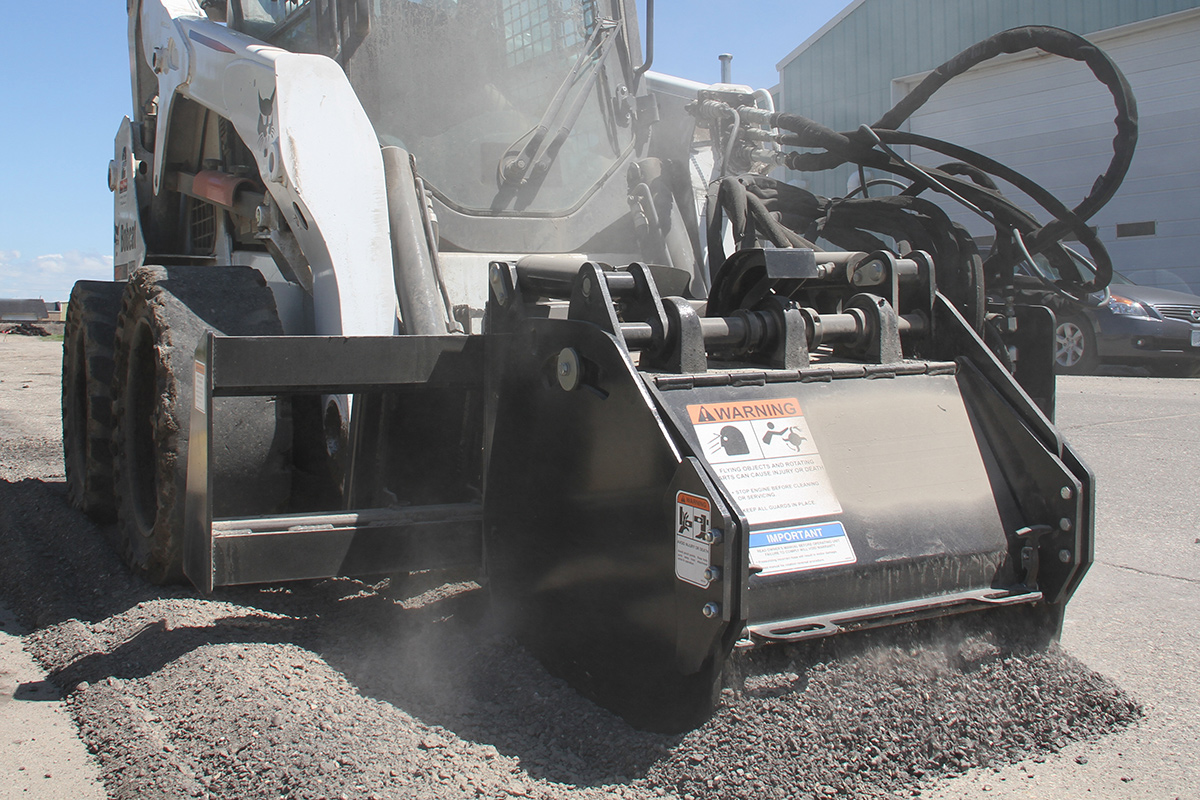

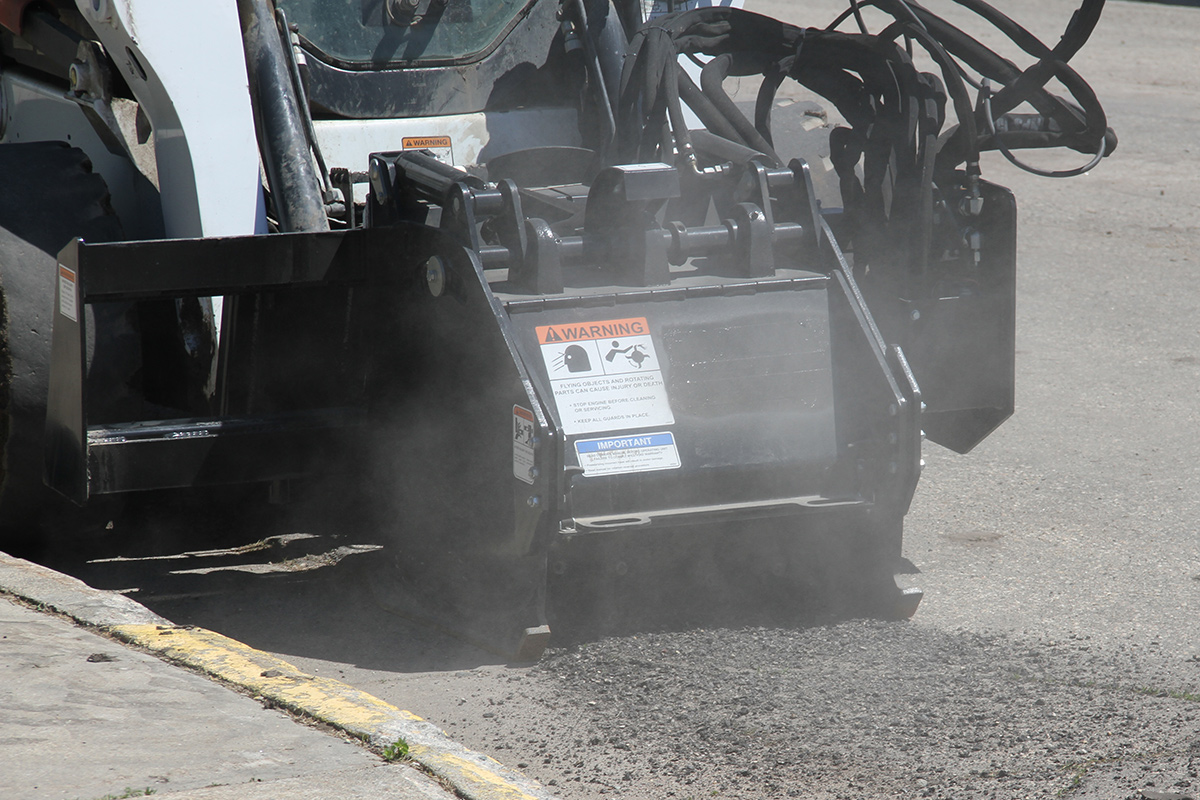

Highly versatile Cold Planers are adaptable to a wide variety of job environments including road repair, bridge deck repair, landscaping, municipal, shopping center and utility work. The Cold Planer is easy to maneuver around manhole and storm drains; excellent for bridge decks where heavier, dedicated planers are not allowed. Hydraulic side-shift and depth control allows skid steer operators to shift it up to 24” for maneuvering close to buildings and other obstacles from the comfort of your seat.

Categories: , , , ,
ModelCP18CP24CP36CP48
Part Number900938900939901430901431
Depth of Cut0-6”0-6”0-6”0-6”
Width of Cut18”24”36”48”
Number of Teeth48607890
Standard Side-Shift24” Hydraulic24” Hydraulic24” Hydraulic24” Hydraulic
Tilt16°16°8°8°
Hydraulic Requirement22-56 GPM25-56 GPM25-112 GPM25-112 GPM
2,800-6,525 psi3,000-6,525 psi3,000-6,525 psi3,000-6,525 psi
Weight1,600 lb.1,750 lb.2,550 lb.2,800 lb.

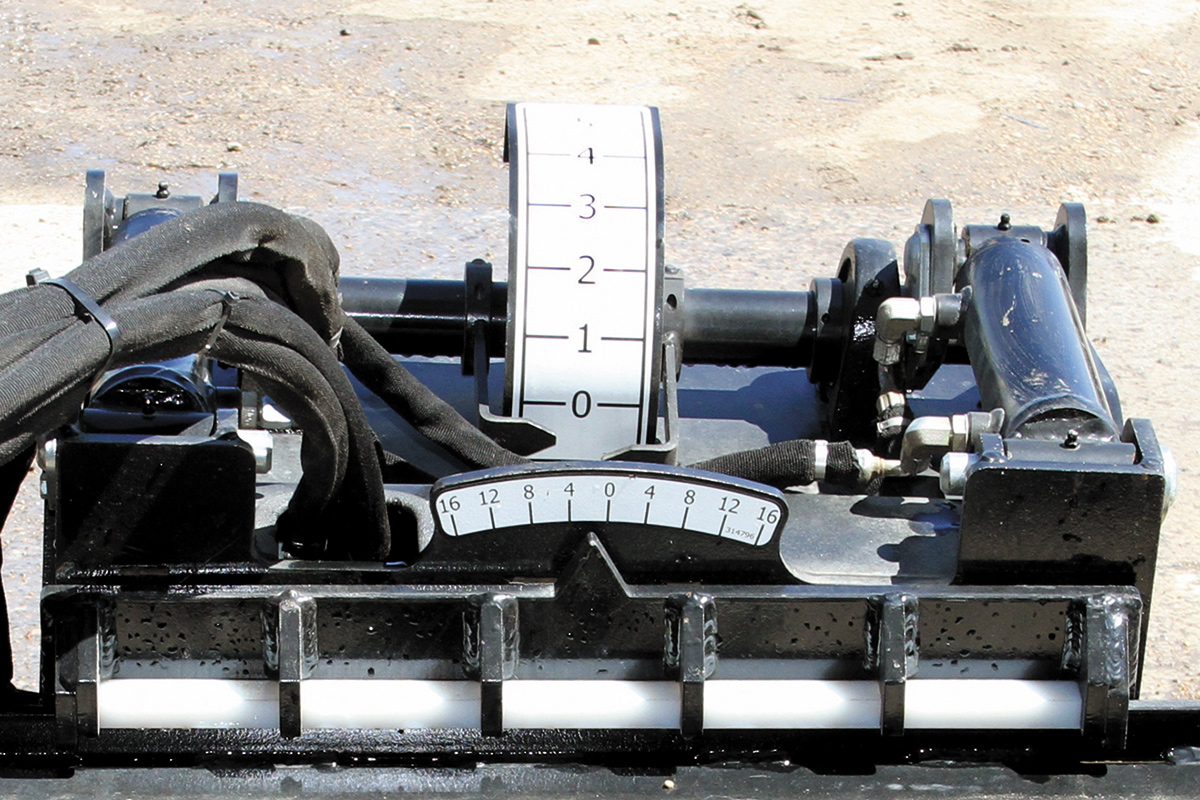

Depth ControlHydraulicHydraulicHydraulicHydraulic
Tilt ControlHydraulicHydraulicHydraulicHydraulic
Case DrainRequiredRequiredRequiredRequired
Hydraulic Flow ClassificationHigh FlowHigh FlowHigh FlowHigh Flow
  • Adjustable to a wide variety of job environments including road construction, landscaping, bridge deck repair, municipal, shopping center, and utility work
  • Easy to maneuver around manholes and storm drains; excellent for bridge decks where heavier dedicated planers are not allowed
  • Two tools in one; cut asphalt and concrete with the same machine
  • Side-shift feature moves planer from left to right for maximum maneuverability.
