Digga Drive Head UD 190 2 speed anchor drive

Contact us for pricing.

THE FASTEST DRIVE HEAD IN ITS CLASS

Digga’s High Powered Drives operate at a MAX PRESSURE OF 5,000 PSI providing you with the speed and performance without detuning your machine.

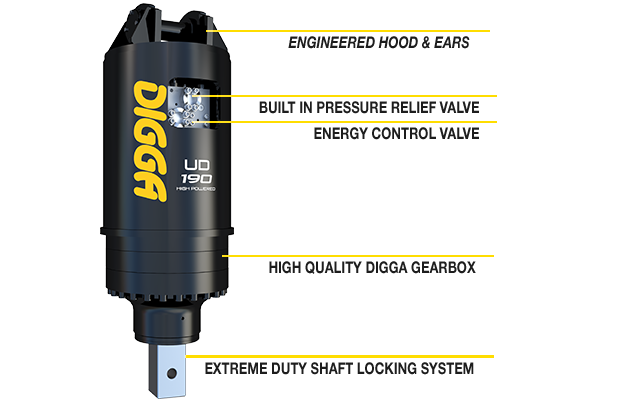

COMPACT, HIGH QUALITY, DIGGA MADE GEARBOX

Digga gears are precision machined by Digga from high-grade alloy steel, specifically for gear manufacturing. Highly efficient, pressurized gearbox ensures no leaks & minimal maintenance.


BUILT-IN PRESSURE RELIEF VALVE AS STANDARD

Ensures max volumetric efficiency for consistent & efficient pile installation throughout the working day.


INTEGRATED ENERGY CONTROL VALVE

This revolutionary bypass valve is fitted to the drive to control the rapid decompression of oil caused by pile kick-back during the screw anchoring process.


ENGINEERED HOOD & EARS

For maximum strength. Specifically designed for heavy-duty drilling applications.


EXTREME DUTY SHAFT LOCKING SYSTEM

The Digga 2 piece shaft, is a separate component to the planetary carrier, isolating the planetary gears fromthe pushing, pulling & bending forces generated by the machine.

Specifications

UD190HPT UD220HPT UD250HPT UD300HPT
MAX TORQUE (FT-LBS) 141,685 157,634 184,842 231,814
MAX SPEED (RPM) LOW TORQUE 18 17 14 11
MAX SPEED (RPM) HIGH TORQUE 11 10 8 7
MAX FLOW (GPM) 100 GPM @ 3,500 PSI
MAX PRESSURE – DO NOT EXCEED 5,000 PSI @70 GPM
MAX HORSE POWER 201 201 201 201
MOTOR TYPE RADIAL PISTON RADIAL PISTON RADIAL PISTON RADIAL PISTON
PRESSURE RELIEF VALVE INCLUDED INCLUDED INCLUDED INCLUDED
ENERGY CONTROL VALVE INCLUDED INCLUDED INCLUDED INCLUDED
STANDARD OUTPUT SHAFT 150MM
SQUARE
150MM
SQUARE
150MM
SQUARE
150MM
SQUARE
