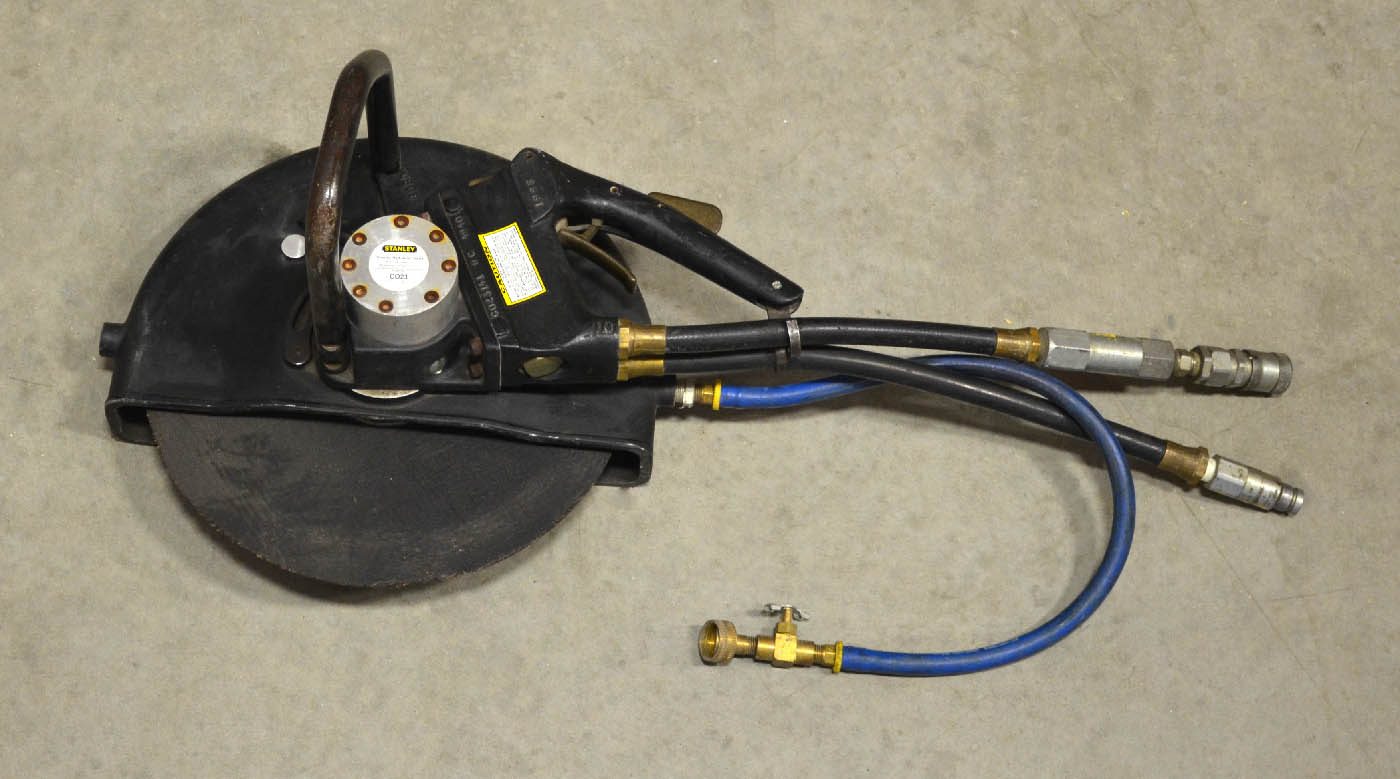

The CO23 Cut-Off Saw is a hydraulic powered saw for dimensional cutting of metal, concrete, rock, masonry, and coral. It has a high torque gear motor and 10″ blade capacity for abrasive and diamond wheels with a 1″ arbor. The CO23 is designed for underwater operation and is painted hi-visibility yellow.
Features
• Integral Stanley Hyrevz gear motor produces high torque
• Direct drive motor
• Stainless Steel spool and fasteners
• Adjustable shoe for precise cuts
• Interlocking safety trigger
• Cast aluminum handle and guard for durability
• Counter-clockwise rotation
• Wide flow range
Specifications
Capacity 10″ / 25.4 cm wheel
Performance 3275 rpm @ 15 gpm
Arbor 1″ / 2½ cm
Circuit Type Open Center
Flow Range 10-15 gpm /
38-57 lpm
Optimum Flow 15 gpm / 57 lpm
Working Pressure 1500-2000 psi /105-140 bar
Full Relief Setting 2250 psi / 155 bar
Weight 23 lbs / 10.4 kg
Length 19½” / 49½ cm
Width 11″ / 28 cm
Hydraulic Ports -8 SAE O-ring
½” Male Pipe
Hose End
