Blue Diamond Severe Duty Brush Cutter

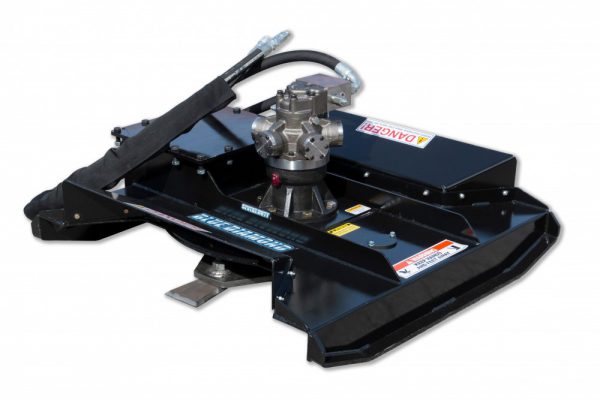

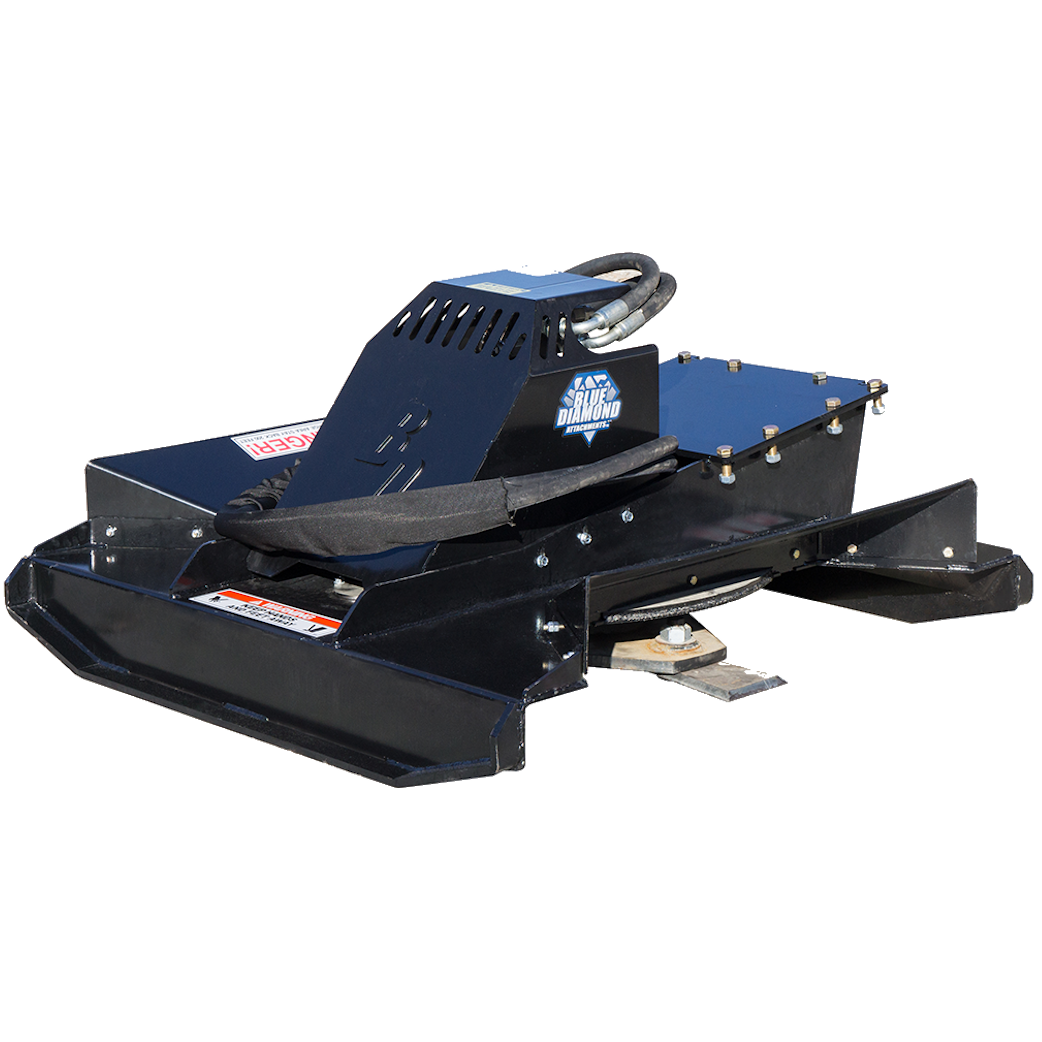

Blue Diamond® Mini Excavator Severe Duty Brush Cutter is a serious attachment for clearing land! The Italian-made piston motor will tear through large brush with ease, boasting 40% more torque than geroler/gerotor type motors. The cut-away design allows better access to larger material and keeps grass standing while cutting, leaving a cleaner finish. The three AR400 blades make quick work of brush or grass. Proprietary valving allows this unit to be used without installing a case drain line, a first for a piston motor! This saves you time and money while giving the benefit of the piston motor’s increased torque.  Available only in 42″ cut currently, it weighs 729 lbs. without a mount. Flow range is 16 to 26 GPM. 10,000 lbs. min machine weight recommended, for up to 19,000 lb. machines.

PART NUMBER CUT WIDTH WEIGHT BLADES REQ. GPM
103820 42″ 729 lbs. 3 16 – 26
  • 1-year warranty
  • High torque piston motor
  • Cutaway side
  • 6” cutting capacity
  • No case drain needed
  • Bearing seal protection kit under deck
  • Grease filled drive dramatically improves bearing life and prevents downtime from seal damage
  • 3/4″ Thick blade carrier
