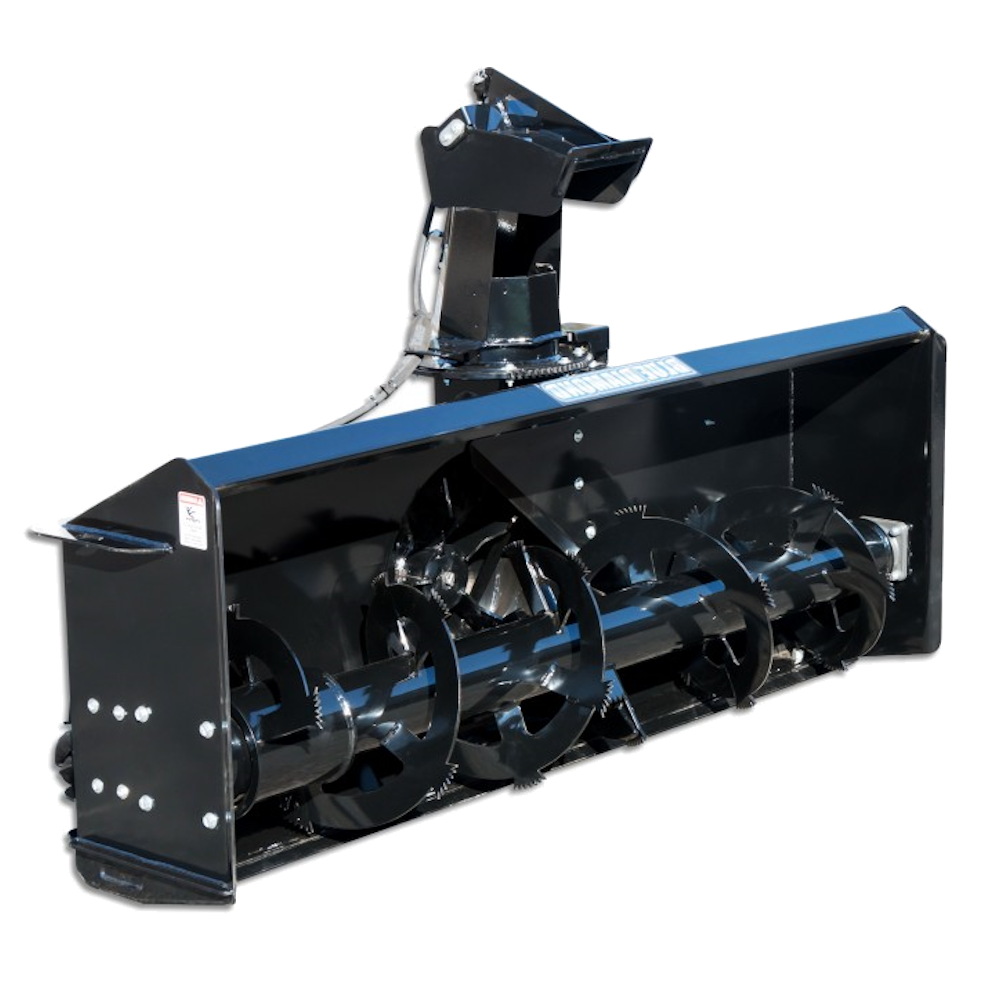

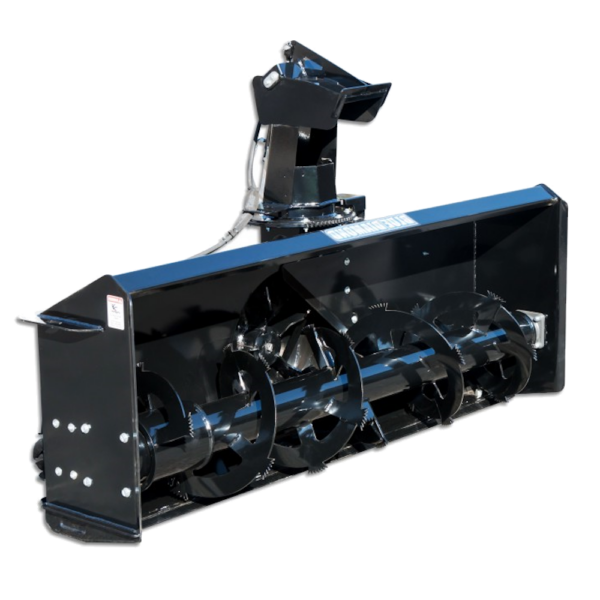

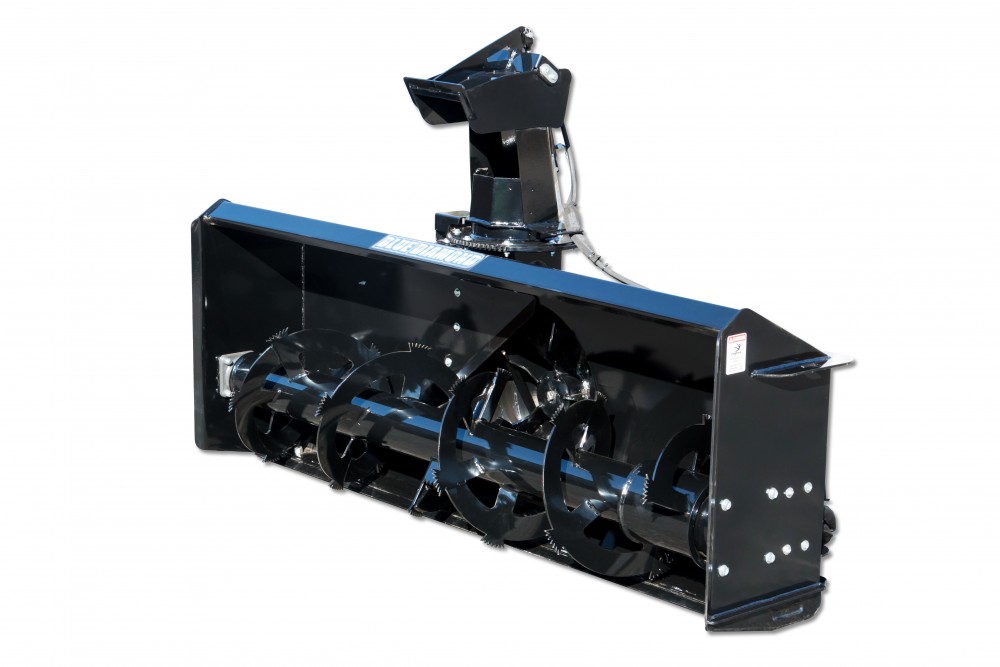

Blue Diamond Skid Steer Snow Blower – Extreme Duty

Contact us for pricing.

HEAVY DUTY, no, SEVERE DUTY snow blower. With a choice of widths and motor packages, you can find the optimally sized snow blower to match your skid steer or compact track loader’s capacity AND the work you do with it.

Extreme Snow Blower Skid Steer Extreme Snow Blower Skid Steer Extreme Snow Blower Skid Steer Extreme Snow Blower Skid Steer Extreme Snow Blower Skid Steer Extreme Snow Blower Skid Steer

The Blue Diamond Skid Steer Snow Blower is engineered for years of hard use.

A high-pressure bypass relief system eliminates the need for shear pins during sudden stops on the skid steer. With a choice of widths and motor packages, you can find the optimally sized snow blower (from 68″ – 84″) to match your skid steer or compact track loader’s capacity.

FEATURES:

  • Aggressive toothed 16″ auger with 2 ¼ x ¼” ribbon flighting,
  • 5 blade fan, 22″ diameter, 6 1/2″ deep,
  • No shear pins; high-pressure bypass relief system,
  • No chains; direct drive auger and fan,
  • 270 hydraulic rotary chute with 7” opening,
  • Hydraulic chute deflector,
  • Adjustable hardened steel skid shoes,
  • 7 gauge steel fan housing,
  • 10 gauge steel blower shell,
  • 1/4″ end plates,
  • High strength corner bracing
  • Heavy-duty polyurethane idler wheels
  • Bolt-on grader cutting edge.
Model Flow Range Cut Width Cut Height Overall Width Overall Height Weight
68″ 11-16 GPM 69.7″ 29.5″ 73.5″ 60.5″ 915 lbs.
68″ 17-20 GPM 69.7″ 29.5″ 73.5″ 60.5″ 915 lbs.
68″ 21-23 GPM 69.7″ 29.5″ 73.5″ 60.5″ 915 lbs.
72″ 17-20 GPM 73.7″ 29.5″ 77.5″ 60.5″ 950 lbs.
72″ 21-23 GPM 73.7″ 29.5″ 77.5″ 60.5″ 950 lbs.
72″ 24-25 GPM 73.7″ 29.5″ 77.5″ 60.5″ 950 lbs.
72″ 30-40 GPM 73.7″ 29.5″ 77.5″ 60.5″ 950 lbs.
84″ 24-25 GPM 85.7″ 29.5″ 89.5″ 60.5″ 1050 lbs.
84″ 26-29 GPM 85.7″ 29.5″ 89.5″ 60.5″ 1050 lbs.
84″ 30-40 GPM 85.7″ 29.5″ 89.5″ 60.5″ 1050 lbs.
