Blue Diamond Severe Duty Brush Mower

bd-exterme-series-brush-mower-300x300.png Promac-R-SERIES-300x300.png

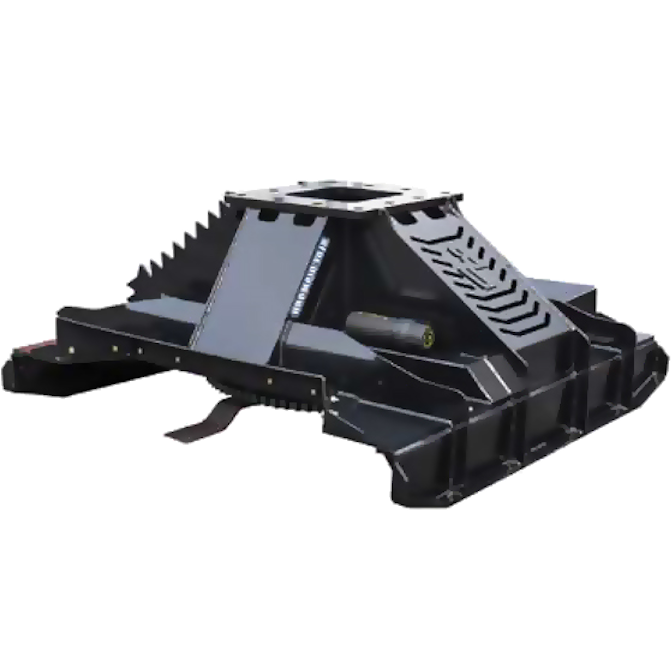

The Blue Diamond® Severe Duty Excavator Cutter is designed for 38,000 lb to 60,000 lb machines. Weighing in at 2,264 lbs with a 60″ wide cutting width, this cutter is the most durable in its class. With a 1/2″ thick deck and sturdy reinforcements, this cutter is built to withstand the toughest applications. The 3/4″ thick double sided blades make quick work of trees up to 6″ in diameter. A 1″ thick blade carrier with a serrated edge keeps the material flowing efficiently under the deck. You can use the rugged teeth on the back to maneuver fallen material.

Categories: ,
PART NUMBER MODEL WEIGHT DIMENSIONS MOTOR SIZE FLOW REQUIREMENTS
303860 60″ 2,264 lbs* 64″ W x 70.5″ D x 30″ H 150cc 24-34 gpm
303865 60″ 2,264 lbs* 64″ W x 70.5″ D x 30″ H 200cc 35-45 gpm
303867 60″ 2,264 lbs* 64″ W x 70.5″ D x 30″ H 250 cc 45-55 gpm
*Attachment only. Mount weight is additional and varies by machine
  • 1/2″ thick deck
  • Sturdy deck reinforcements
  • Three 3/4″ thick blades
  • 1″ thick serrated blade carrier
  • Highly efficient piston motor
  • Rear teeth for moving material
  • Enclosed motor for protection
  • Removable sides to expose blades
  • Host machine must have case drain
