Blue Diamond Heavy Duty

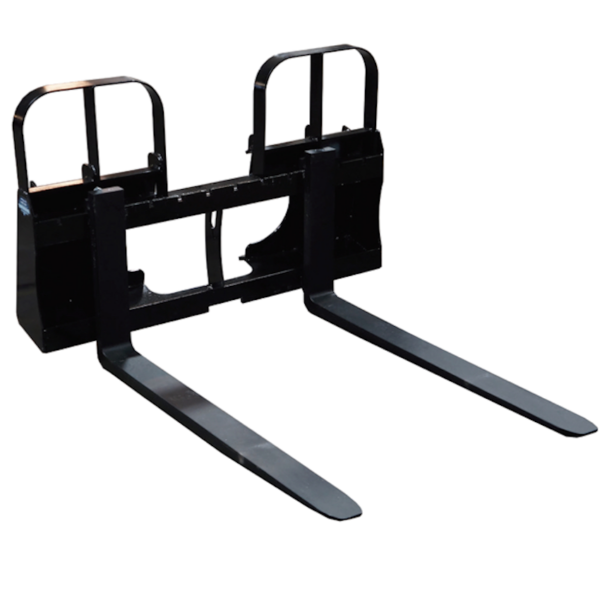

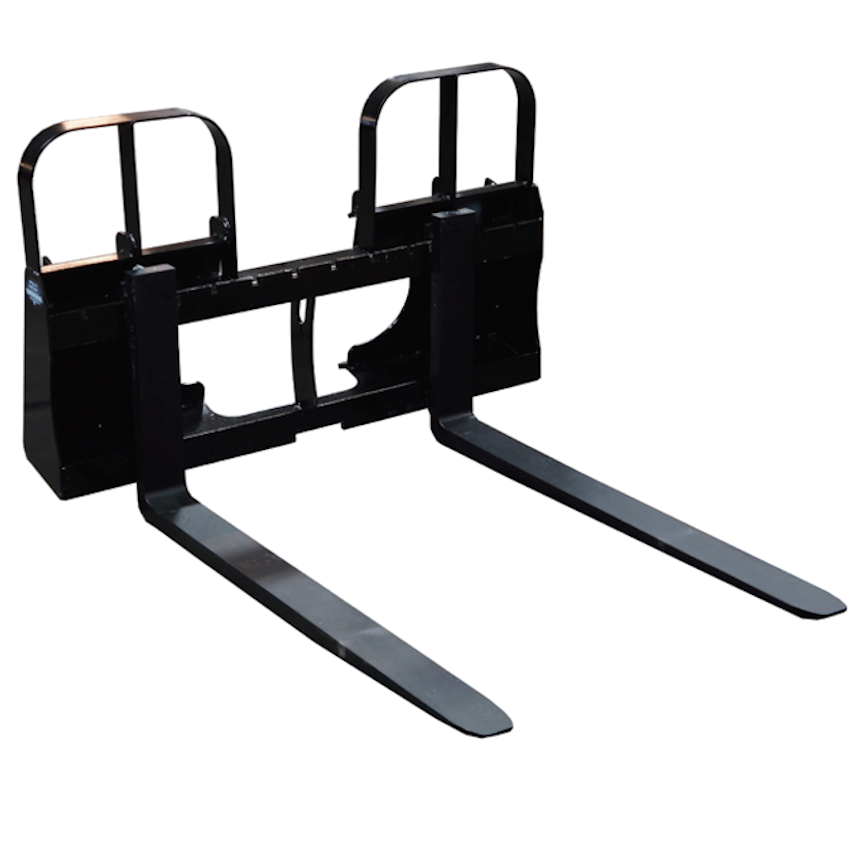

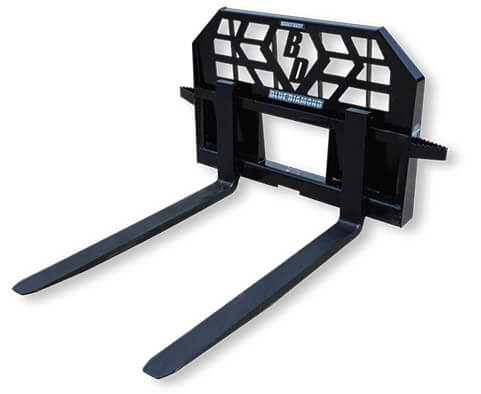

Blue Diamond® Heavy Duty Skid Steer Pallet Forks are rated for 5,000 lb. lift. Using an easy-to-see-through frame, the heavy duty pallet forks give added lift capacity for larger skid steers. The reinforced brick guard and quick attach area make it extremely durable for heavy use. 48” tines are standard, and 60” and 72″ are available. The powder-coated frames feature a riveted on serial tag that has the lift capacities in pounds and kilograms to meet job site requirements for lifting attachments. Rental Recommended.

PART NUMBERMODELTINE SIZELIFT CAPACITYWEIGHT
314011Pallet Fork, HD, W/Steps48” X 1 1/2”5,000 LBS375 lbs
314012Pallet Fork, HD, No Steps48” X 1 3/4”5,000 LBS375 lbs
314013Pallet Fork, HD, W/Steps48” X 1 3/4”5,000 LBS375 lbs
314014Pallet Fork, HD, W/Steps60” X 1 3/4”5,000 LBS452 lbs
314085Pallet Fork, HD, W/Steps60” X 1 1/2”5,000 LBS420 lbs
314090Pallet Fork, HD, W/Steps72” X 1 3/4”5,000 LBS500 lbs
  • Reinforced brick guard
  • Added plate in quick-attach
  • 5,000 lb. capacity
  • Side steps standard
